Product Summary

The IMC1210ER3R3K is a surface mount, molded inductor.

Parametrics

IMC1210ER3R3K absolute maximum ratings: (1) Inductance Range: 0.01 μH to 220 μH; (2) Inductance Tolerance: ± 20 % for 0.01 μH to 0.82 μH ± 10 % for 1.0 μH to 220 μH standard. Special tolerances available; (3) Temperature Range: － 55 °C to + 125 °C; (4) Coilform Material: Non－magnetic for 0.01 μH to 0.10 μH Powdered Iron for 0.12 μH to 100 μH. Ferrite for 120 μH through 220 μH.

Features

IMC1210ER3R3K features: (1) Printed marking; (2) Compatible with vapor phase and infrared reflow soldering; (3) Molded construction provides superior strength and moisture resistance; (4) Tape and reel packaging for automatic handling, 2000/reel, EIA 481; (5) 100 % lead (Pb)－free and RoHS compliant.

Diagrams

IMC1210ER3R3K dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

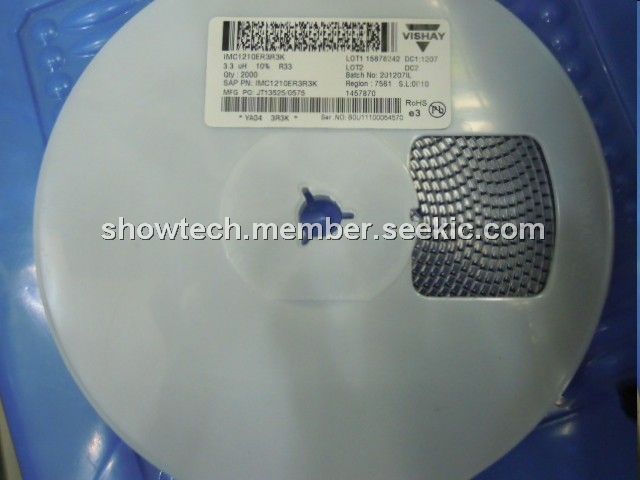

IMC1210ER3R3K
IMC1210ER3R3K
Vishay/Dale
RF Inductors 3.3uH 10%
Data Sheet
0-1: $0.28
1-50: $0.25
50-100: $0.23
100-500: $0.20
