Product Summary
The B0500T is a telefuse SMD power cross protection fuse.
Parametrics
B0500T characteristics: (1)Ampere Rating: 0.500A; (2)Voltage Rating: 600V; (3)Typical Cold Resistance: 0.350ohms; (4)Volt-drop @ 100 % In: max=0.28V; (5)Melting I2T<10 msec: 1.4A2sec; (6)Melting I2T @ 10 In: 1.8A2 sec; (7)Peak Surge Current: 25A; (8)Peak Surge Current: 35A; (9)Maximum Power Dissipation: 0.25W.
Features
B0500T features: (1)For use in telecommunication circuit applications requiring low current protection with high surge tolerance; (2)Overcurrent protection to Telcordia GR-1089-CORE & UL 1950/60950; (3)Bourns TISP products are recommended for the overvoltage section of the circuit; (4)Agency recognition: File: E198545.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 B0500T |
Bourns |
Fuses 600V .5A |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
B050-000 |
|
REMOTE ACCESS UNIT IP FOR KVM |
Data Sheet |
Negotiable |
|
||||||||||||
|
B0500T |
Bourns |
Fuses 600V .5A |
Data Sheet |
|
|
||||||||||||
|

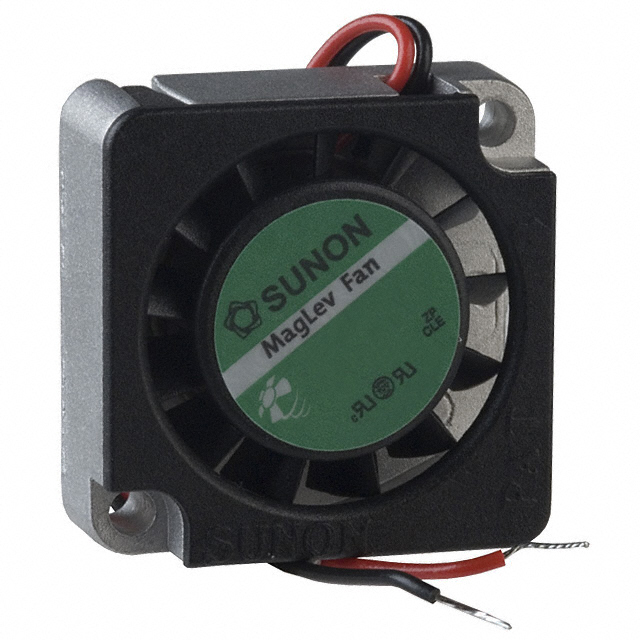

B0502AFB1-8 |
|
BLOWER 5VDC 25X9.8MM .9W ALUM |
Data Sheet |
Negotiable |
|
||||||||||||
 |
B0502AFB1-8 (MS) |
|
BLOWER 5VDC 25X9.8MM .9W .9CFM |
Data Sheet |
Negotiable |
|
||||||||||||
|

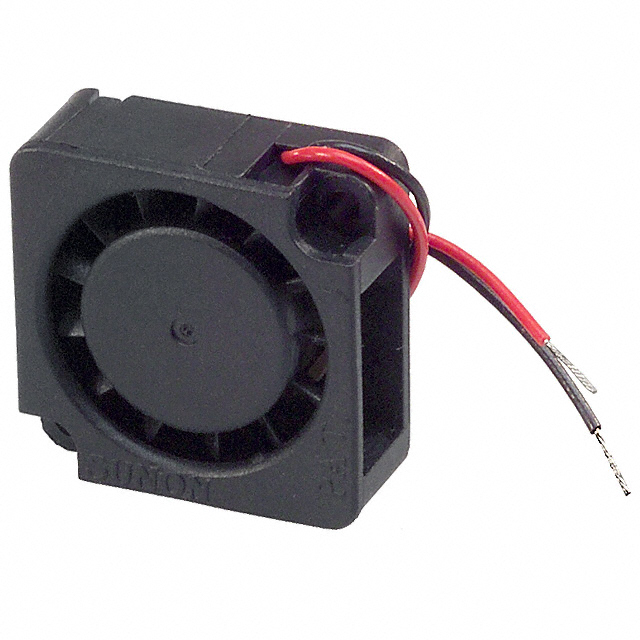

B0502AFB2-8 |
|
BLOWER 5VDC 25X9.8MM .65W ALUM |
Data Sheet |
Negotiable |
|
||||||||||||
 |
B0502AFB2-8 MS |
|
BLOWER 5VDC 25X9.8MM .6W .7CFM |
Data Sheet |
Negotiable |
|
||||||||||||
