Product Summary
The PE-65612NL is a transformer for digital audio data transmission.
Parametrics
PE-65612NL electrical specifications: (1)Turns Ratio(5%): 1:1; (2)Primary Inductance(mH ±20%): 2.5; (3)LL (μH) MAX: 0.50; (4)Rise Time (nsec) MAX: 25; (5)ET (V-μsec) MIN: 20; (6)Isolation (Vrms) MIN: 2000; (7)Bandwidth (100 KHz- 55 MHz) TYP: 3dB; (8)Return Loss (100kHz-10MHz) MIN: 20dB; (9)Schematic: THT.
Features
PE-65612NL features: (1)Operating transmission rates: 1 to 7 Mbps; (2)Controlled rise time: 25 nsec MAX; (3)High isolation voltage: 2 kV MIN.

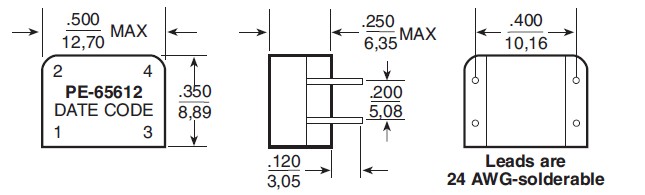

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PE-65612NL |
Pulse |
Transformers Audio & Signal IND |
Data Sheet |
|
|
||||||||||||
