Product Summary

The UPS1J102MHD is an aluminum electrolytic capacitor.

Parametrics

UPS1J102MHD specifications: (1)Category Temperature Range: –55 to +105℃ (6.3 to 100V); (2)Rated Voltage Range: 6.3 to 450V; (3)Rated Capacitance Range: 0.47 to 15000μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20℃; (5)Shelf Life: After storing the capacitors under no load at 105℃ for 1000 hours, and after performing voltage treatment based on JIS C 5101-4 clause 4.1 at 20℃, they will meet the specified value for endurance characteristics listed above; (6)Marking: Printed with white color letter on dark brown sleeve.

Features

UPS1J102MHD features: (1)Wide temperature range type, miniature sized; (2)Adapted to the RoHS directive (2002/95/EC).

Diagrams

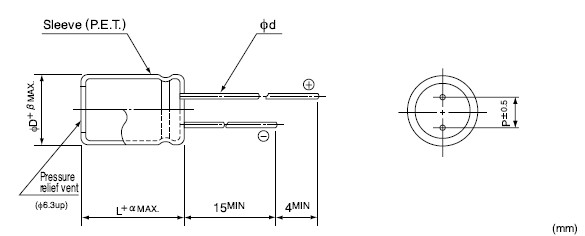

UPS1J102MHD dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

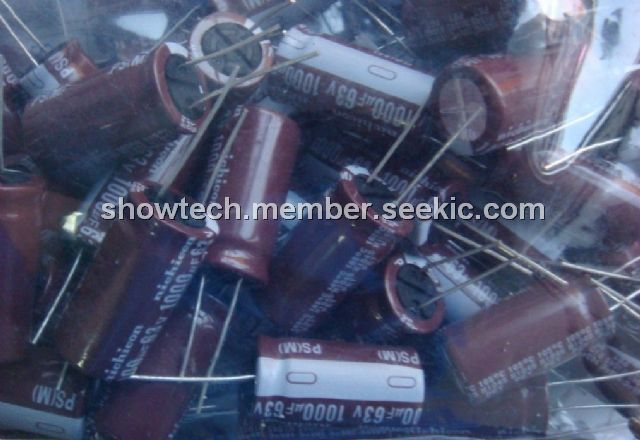

UPS1J102MHD
UPS1J102MHD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 63volts 1000uF 16x31.5 20% 7.5LS
Data Sheet
0-1: $1.31
1-10: $1.19
10-100: $1.08
100-500: $0.83
UPS1J102MHD1AA
UPS1J102MHD1AA
Nichicon
Aluminum Electrolytic Capacitors - Leaded 1000UF 63V 105c
Data Sheet
0-1: $0.46
1-500: $0.37
500-1000: $0.35
1000-1500: $0.34
