Product Summary

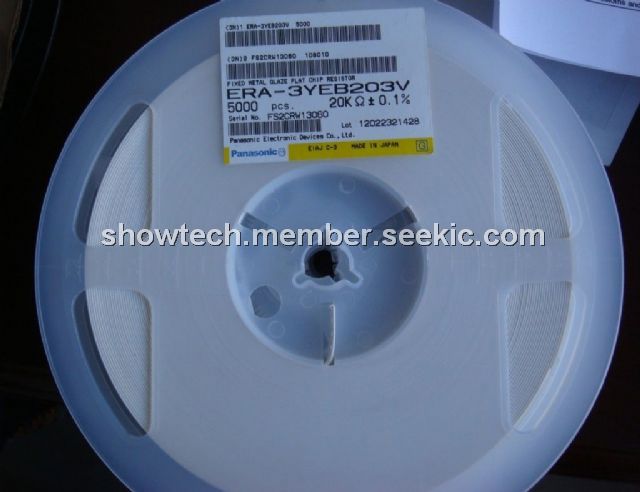

The ERA-3YEB203V is a metal film chip resistor.

Parametrics

ERA-3YEB203V absolute maximum ratings: (1)Power Rating at 70 ℃: 0.063W; (2)Limiting Element Voltage (Maximum RCWV)(1): 75V; (3)Maximum Overload Voltage(2): 150V.

Features

ERA-3YEB203V features: (1)Small size and lightweight; (2)High reliability Low T.C.R. & current noise, excellent non－linearity; (3)Suitable for both refl ow and fl ow sol der ing; (4)Reference Standards IEC 60115－8, JIS C 5201－8, EIAJ RC－2133A.

Diagrams

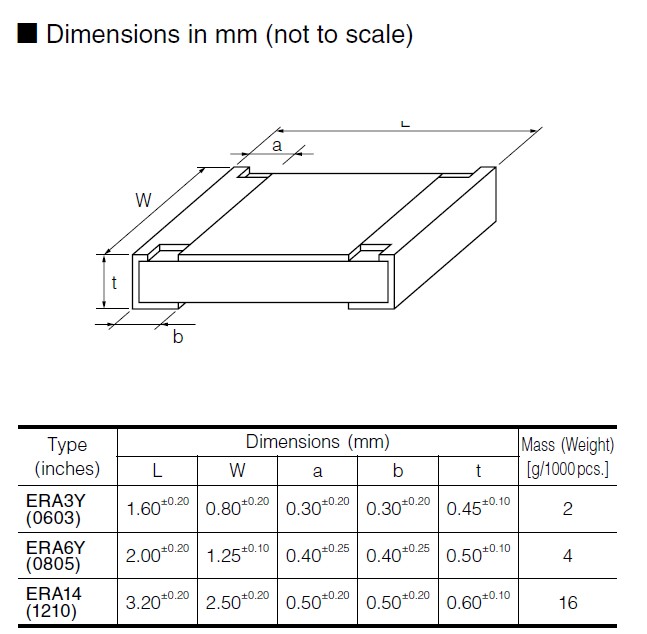

ERA-3YEB203V pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ERA-3YEB203V
ERA-3YEB203V
Panasonic Electronic Components
Thin Film Resistors - SMD 20K OHM .1% 25PPM
Data Sheet
0-1: $0.50
1-25: $0.20
25-100: $0.17
100-250: $0.13
