Product Summary

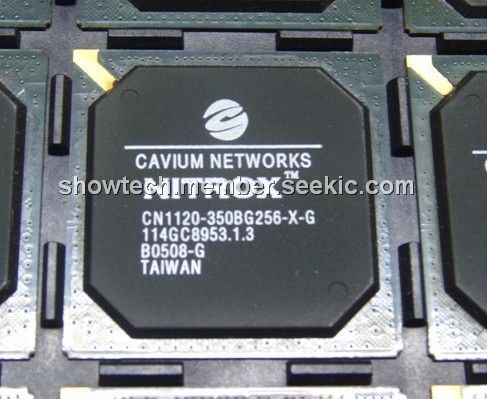

The CN1120-350BG256 is a Security Macro Processor. It is suitable for Firewalls, Remote Access Gateways, Switches, Routers, Network Attached Storage Systems (NAS), Storage Area Networks (SAN).

Features

CN1120-350BG256 features: (1)Single chip solution that accelerates all cryptographic operations and the IPsec / IKE protocols; (2)Hyper Transport (8 bit, Full Differential, 500 MHz, DDR) ; (3)PCI-X (64bit, 133MHz, Master and Slave modes) ; (4)PCI (64bit, 66MHz, Master and Slave modes) ; (5)24K to 72K 180bit Diffie Hellman operations/second ; (6)14K to 42K 1024bit RSA operations/second ; (7)Up to 14000 IKE Main Mode (DH + RSA sig)/ sec ; (8)RSA and Diffie-Hellman ; (9)DES/3DES, AES, ARC4 ; (10)MD5, SHA-1, HMAC-MD5, HMAC-SHA-1 ; (11)Supports unlimited IPsec SAs with host memory ; (12)Support for local 64bit DDR DRAM (optional) .

Diagrams

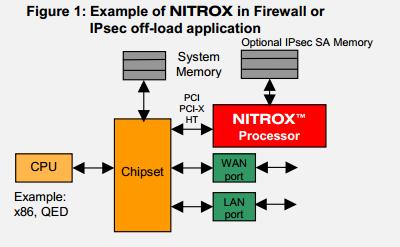

CN1120-350BG256 circuit diagram
