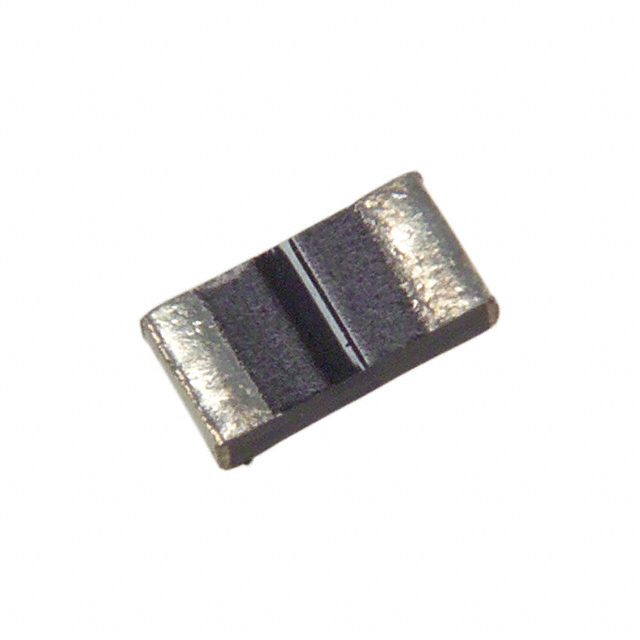

Product Summary
The ECP-U1C474MA5 is a stacked metallized plastic film chip capacitor. It is used in noise suppressor, coupling.
Parametrics
ECP-U1C474MA5 specifications: (1)Category temp. range(Including temperature-rise on unit surface): - 40 ℃ to + 85 ℃; (2)Rated voltage: 16 VDC; (3)Capacitance range: 0.10 μF to 1.0 μF (E6); (4)Capacitance tolerance: ±20 % (M); (5)Dissipation factor (tanδ): tanδ≦1.5 % (20 ℃, 1 kHz); (6)Withstand voltage: Between terminais: Rated volt (VDC)×175 % 1 s to 5 s; (7)Insulation resistance (IR): C≦0.33 μF: IR≧1000 MΩ (20℃, 10 VDC, 60 s); C>0.33μF : IR≧300 MΩ · μF (20℃, 10 VDC, 60 s); (8)Soldering conditions: Reflow soldering : 240 ℃ max. and 30 sec max. at more than 220 ℃(Temp. at cap. surface).
Features
ECP-U1C474MA5 features: (1)Low ESR; (2)Max. capacitance values 1.0μF; (3)Smallest package size in film capacitors 3225/1.0μF; (4)For reflow soldering; (5)RoHS directive compliant.
Diagrams

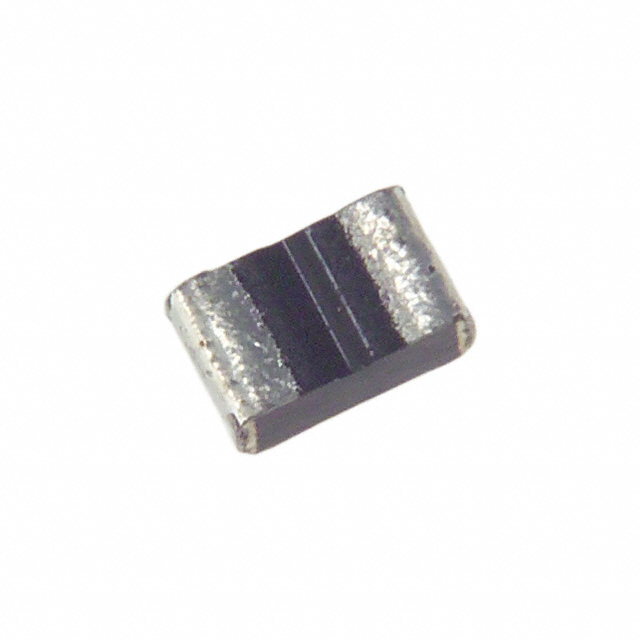

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ECP-U1C474MA5 |
Panasonic Electronic Components |
Film Capacitors .47uF 16V 20% FILM 1206 |
Data Sheet |
|
|
||||||||||||
