Product Summary

The A82C250 is a CAN controller interface. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller. The A82C250 is designed for high-speed applications (up to 1 Mbaud) in cars.

Parametrics

A82C250 absolute maximum ratings: (1)VCC supply voltage: -0.3 to +9.0 V; (2)Vn DC voltage at pins 1, 4, 5 and 8: -0.3 to VCC + 0.3 V; (3)V6, 7 DC voltage at pins 6 and 7: -8.0 to +18.0 V; (4)Vtrt transient voltage at pins 6 and 7: -150 to +100 V; (5)Tstg storage temperature: -55 to +150 ℃; (6)Tamb ambient temperature: -40 to +125 ℃; (7)Tvj virtual junction temperature: -40 to +150 ℃; (8)Vesd electrostatic discharge voltage: -2000 to +2000 V.

Features

A82C250 features: (1)Fully compatible with the ISO 11898 standard; (2)High speed (up to 1 Mbaud); (3)Bus lines protected against transients in an automotive environment; (4)Slope control to reduce Radio Frequency Interference(RFI); (5)Differential receiver with wide common-mode range for high immunity against ElectroMagnetic Interference (EMI); (6)Thermally protected; (7)Short-circuit proof to battery and ground; (8)Low-current standby mode; (9)An unpowered node does not disturb the bus lines; (10)At least 110 nodes can be connected.

Diagrams

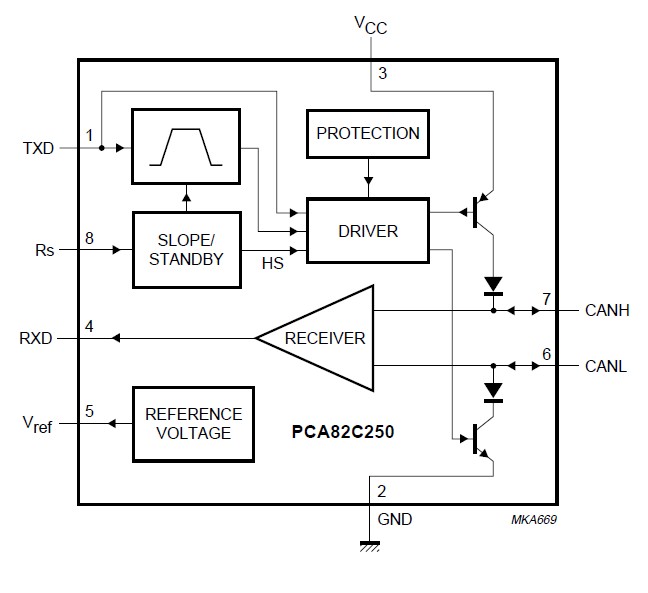

A82C250 block diagram
