Product Summary

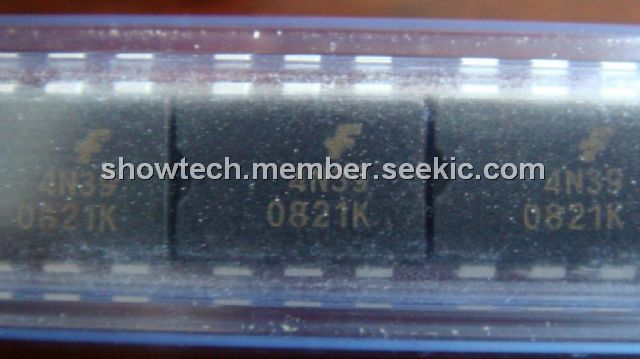

The 4N39 is a photo SCR optocoupler. It has a gallium-arsenide infrared emitting diode optically coupled with a light activated silicon controlled rectifier in a dual in-line package. The applications of the 4N39 are Low power logic circuits, Telecommunications equipment, Portable electronics, Solid state relays, Interfacing coupling systems of different potentials and impedances.
Parametrics
4N39 absolute maximum ratings: (1)Storage Temperature:-55 to 150℃; (2)Operating Temperature:-55 to +100℃; (3)Lead Solder Temperature:260℃ for 10 sec; (4)Continuous Forward Current:60mA; (5)Reverse Voltage:6 V; (6)Forward Current - Peak (300 μs, 2% Duty Cycle):1.0 A; (7)Peak Reverse Gate Voltage:6V; (8)Direct On-State Current:300 mA; (9)Surge On-State Current (100 μs):10 A; (10)Peak Gate Current:10 mA.
Features
4N39 features: (1)10 A, T2L compatible, solid state relay; (2)25 W logic indicator lamp driver; (3)400 V symmetrical transistor coupler; (4)Underwriters Laboratory (UL) recognized File #E90700.

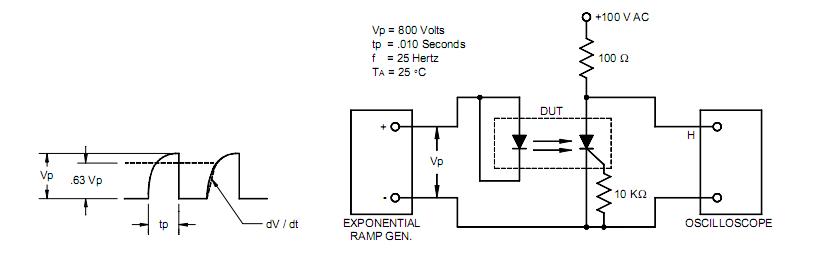

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 4N39300 |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers Optocoupler Photo SCR Output |
Data Sheet |
Negotiable |
|
||||
|
4N39300W |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers Optocoupler Photo SCR Output |
Data Sheet |
Negotiable |
|
||||
|
4N393S |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers Optocoupler SM-DIP6 Photo SCR Output |
Data Sheet |
Negotiable |
|
||||
|
4N393SD |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers Optocoupler SM-DIP6 Photo SCR Output |
Data Sheet |
Negotiable |
|
||||
|
4N39S |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers SO-6 PHOTO SCR |
Data Sheet |
Negotiable |
|
||||
|
4N39SD |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers Optocoupler SM-DIP6 Photo SCR Output |
Data Sheet |
Negotiable |
|
||||
|
4N39W |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers Optocoupler Photo SCR Output |
Data Sheet |
Negotiable |
|
||||
|
4N39 |
Vishay Semiconductors |
Triac & SCR Output Optocouplers Photo SCR Opto |
Data Sheet |
Negotiable |
|
||||
