Product Summary

The 2SC2510 is a 2~30MHz SSB linear power amplifier.

Parametrics

2SC2510 absolute maximum ratings: (1)Collector-base voltage VCBO: 60V; (2)Collector-emitter voltage VCES: 60V; (3)Collector-emitter voltage VCEO: 35V; (4)Emitter-base voltage VEBO: 4V; (5)Collector current IC: 20A; (6)Collector power dissipation PC: 250W; (7)Junction temperature Tj: 175℃; (8)Storage temperature range Tstg: -65~175℃.

Features

2SC2510 features: (1)Specified 28V, 28MHz characteristics; (2)Output power: Po=150WPEP(min); (3)Power gain: Gp=12.2dB(min); (4)Collector efficiency: ηC=35%(min); (5)Intermodulation distortion: IMD=-30dB(max).

Diagrams

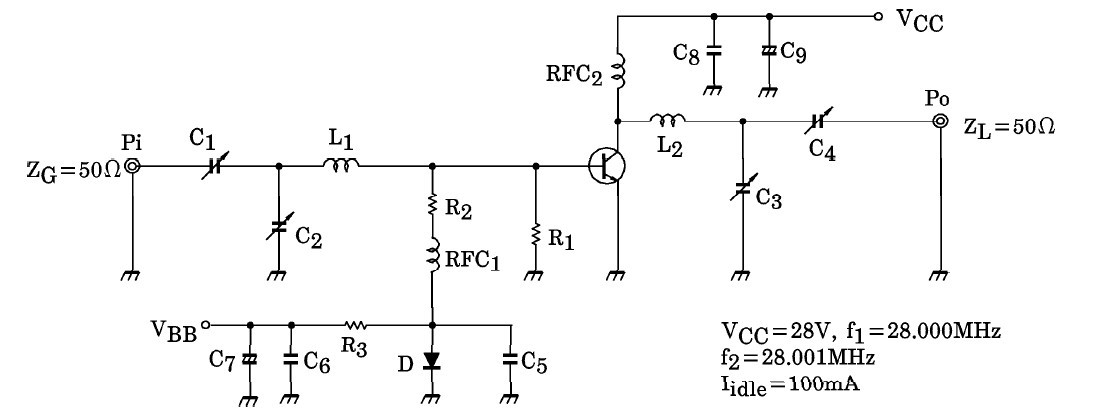

2SC2510 test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

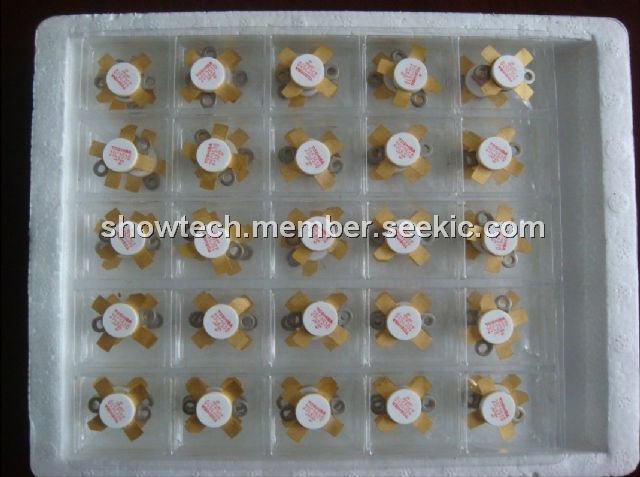

2SC2510
2SC2510

Other


Data Sheet

Negotiable
2SC2510A
2SC2510A

Other


Data Sheet

Negotiable
