Product Summary

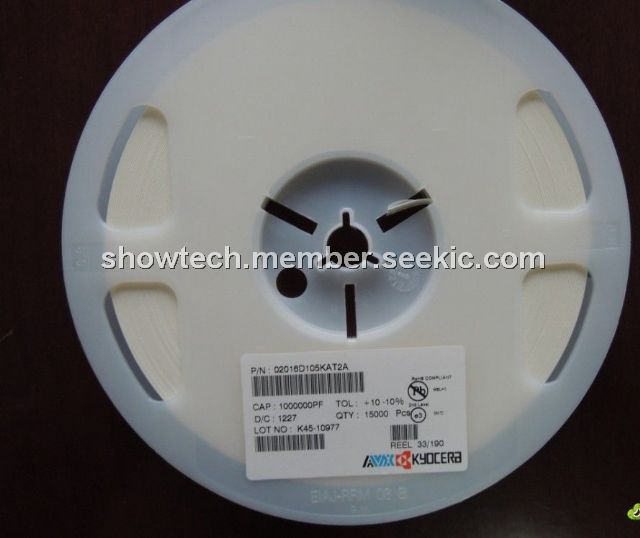

The 02016D105KAT2A is a Multilayer Ceramic Capacitor.

Parametrics

02016D105KAT2A absolute maximum ratings: (1)Operating Temperature Range: －55℃ to +85℃ Temperature Cycle Chamber; (2)Capacitance: Within specified tolerance; (3)Insulation Resistance: 10,000MΩ or 500MΩ - uF, Charge device with rated voltage for whichever is less 120 ± 5 secs ＠ room temp/humidity.

Features

02016D105KAT2A features: (1)General Purpose Dielectric for Ceramic Capacitors; (2)EIA Class II Dielectric; (3)Temperature variation of capacitance is within ±15% from －55℃to +85°C; (4)Well suited for decoupling and filtering applications; (5)Available in High Capacitance values (up to 100uF).

Diagrams

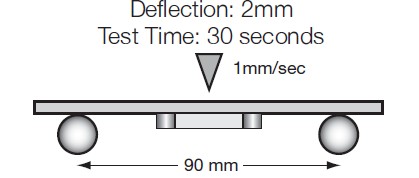

02016D105KAT2A pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
02016D105KAT2A
02016D105KAT2A
AVX
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 1uF 6.3 Volts X5R 10%
Data Sheet
0-1: $0.39
1-50: $0.28
50-100: $0.18
100-500: $0.12
