Product Summary

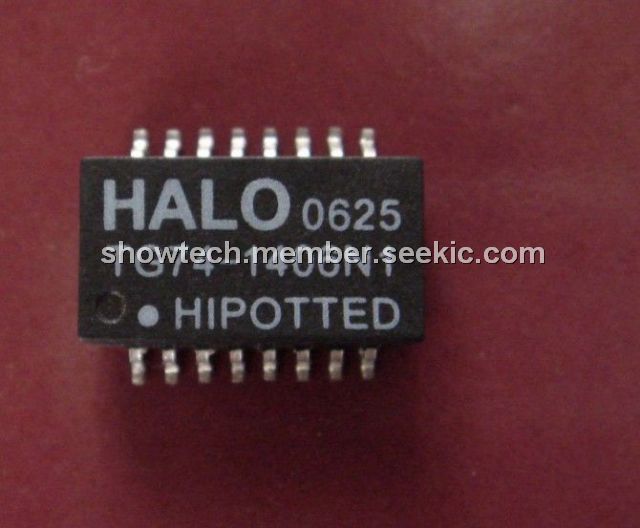

The TG74-1406N1RL is a 16pin SOIC isolation module to meet the isolation and impedance matching requirements of IEEE 802.3 for 10BASE-T.

Parametrics

TG74-1406N1RL general specifications: (1)PRI, OCL:140/25 uH typ.; (2)PRI/SEC, Ow/w:15pF max.; (3)PRI, LL:0.4uH max.; (4)PRI, DCR:0.3Ω max.; (5)schematic:A.

Diagrams

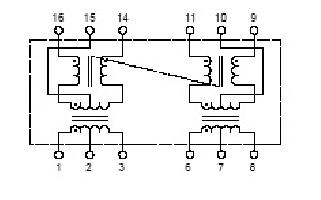

TG74-1406N1RL Schematic diagram
