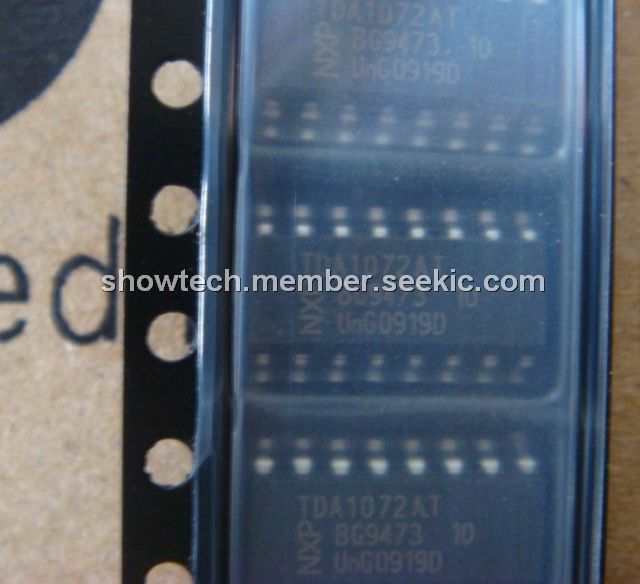

TDA1072AT

integrated AM receiver circuit, SOP, 50 MHz, 500 mV, 200 mA, 300 mW, Electronic standby switch

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.70~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.70~1.00

PartNumber:: TDA1072AT

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Finn's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-28

From Other Seller

Part Number:TDA1072AT
US $0.70 - 1.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TDA1072AT is an integrated AM receiver circuit. It performs the active and part of the filtering functions of an AM radio receiver. It is intended for use in mains-fed home receivers and car radios. The TDA1072AT can be used for oscillator frequencies up to 50 MHz and can handle RF signals up to 500 mV. RF radiation and sensitivity to interference are minimized by an almost symmetrical design. The voltage-controlled oscillator provides signals with extremely low distortion and high spectral purity over the whole frequency range even when tuning with variable capacitance diodes.

Parametrics

TDA1072AT absolute maximum ratings: (1)Supply voltage V13: 12 V; (2)Input voltage pins 14-15 V14-15: 10 V; pins 14-16 V14-16: VP V; pins 15-16 V15-16: VP V; pins 14-16 V14-16: -0.6 V; pins 15-16 V15-16: -0.6 V; (3)Input current(pins 14 and 15) I14-15: 200 mA; (4)Total power dissipation Ptot: 300 mW; (5)Operating ambient temperature range Tamb: -40 to + 80 ℃; (6)Storage temperature range Tstg: -55 to + 150 ℃; (7)Junction temperature Tj: + 125 ℃.
