Product Summary

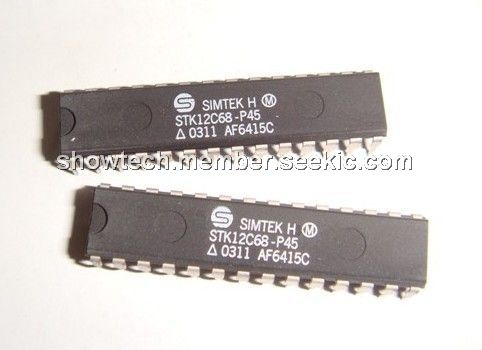

The Simtek STK12C68-P45 is a fast static RAM with a nonvolatile, electrically erasable PROM element incorporated in each static memory cell. The STK12C68-P45 can be read and written an unlimited number of times, while independent, nonvolatile data resides in EEPROM. Data transfers from the STK12C68-P45 to the EEPROM (the STORE operation) can take place automatically on power down.
Parametrics
STK12C68-P45 absolute maximum ratings: (1)Voltage on Input Relative to VSSc(2)Voltage on DQ0-7 or HSB:–0.5V to (VCC + 0.5V); (3)Temperature under Bias:–55 to 125℃; (4)Storage Temperature:–65 to 150℃; (5)Power Dissipation:1W; (6)DC Output Current (1 output at a time, 1s duration):15mA.
Features
STK12C68-P45 features: (1)20ns, 25ns, 35ns and 45ns Access Times; (2)STORE to EEPROM Initiated by Hardware, Software or AutoStore on Power Down; (3)RECALL to SRAM Initiated by Software or Power Restore; (4)10mA Typical ICC at 200ns Cycle Time; (5)Unlimited READ, WRITE and RECALL Cycles; (6)1,000,000 STORE Cycles to EEPROM; (7)100-Year Data Retention in EEPROM; (8)Single 5V + 10% Operation; (9)Not Sensitive to Power On/Off Ramp Rates; (10)No Data Loss from Undershoot; (11)Commercial and Industrial Temperatures; (12)28-Pin SOIC and DIP Packages.

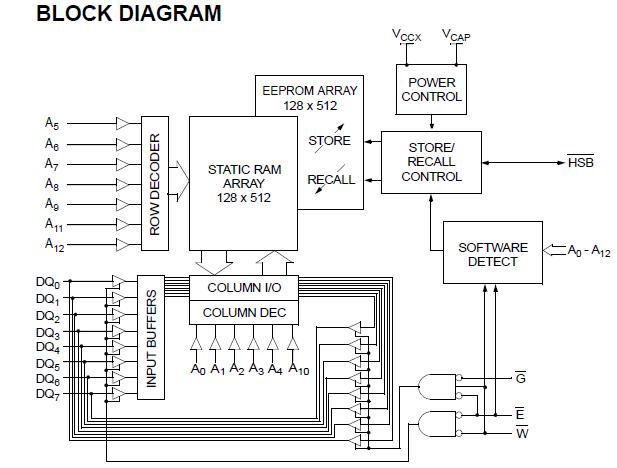

Diagrams
 |
