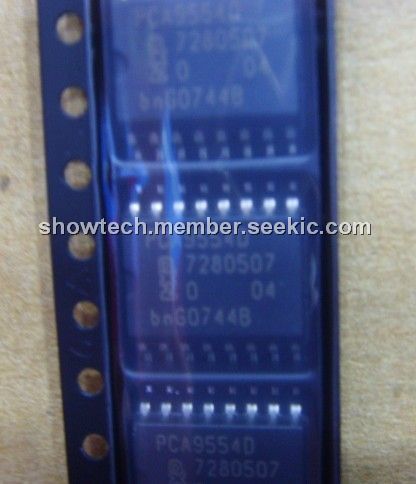

Product Summary
The PCA9554D is an 8-bit I2C and SMBus I/O port with interrupt. It provides 8 bits of General Purpose parallel Input/Output (GPIO) expansion for I2C/SMBus applications and were developed to enhance the Philips family of I2C I/O expanders. The PCA9554D includes higher drive capability, 5V I/O tolerance, lower supply current, individual I/O configuration, 400 kHz clock frequency, and smaller packaging. I/O expanders provide a simple solution when additional I/O is needed for ACPI power switches, sensors, pushbuttons, LEDs, fans, etc.
Parametrics
PCA9554D absolute maximum ratings: (1)VDD Supply voltage: –0.5 to 6.0 V; (2)II DC input current: ±20 mA; (3)VI/O DC voltage on an I/O: VSS – 0.5 to 5.5 V; (4)II/O DC output current on an I/O: ±50 mA; (5)IDD Supply current: 85 mA; (6)ISS Supply current: 100 mA; (7)Ptot Total power dissipation: 200 mW; (8)Tstg Storage temperature range: -65 to +150 ℃; (9)Tamb Operating ambient temperature: –40 to +85 ℃.
Features
PCA9554D features: (1)Operating power supply voltage range of 2.3 to 5.5 V; (2)5 V tolerant I/Os; (3)Polarity inversion register; (4)Active-LOW interrupt output; (5)Low stand-by current; (6)Noise filter on SCL/SDA inputs; (7)No glitch on power-up; (8)Internal power-on reset; (9)8 I/O pins which default to 8 inputs; (10)0 to 400 kHz clock frequency; (11)ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101; (12)Latch-up testing is done to JESDEC Standard JESD78 which exceeds 100 mA; (13)Six packages offered: DIP16, SO16, SSOP16, SSOP20, TSSOP16, and HVQFN16.

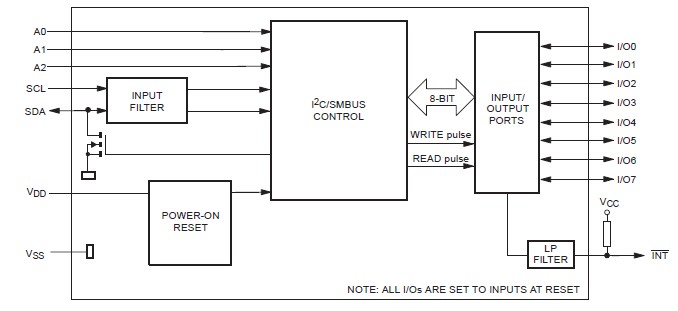

Diagrams
