Product Summary
The MSP3450G-QI-B8-V3 is a single-chip Multistandard Sound Processor which covers the sound processing of all analog TV-Standards worldwide, as well as the NICAM digital sound standards. The full TV sound processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed on a single chip.
Parametrics
MSP3450G-QI-B8-V3 characteristics: (1)Loudspeaker / Headphone channel with volume, balance, bass, treble, loudness; (2)AVC: Automatic Volume Correction; (3)Subwoofer output with programmable low-pass and complementary high-pass filter; (4)Micronas BASS (MB) and 5-band graphic equalizer for loudspeaker channel; (5)Spatial effect for loudspeaker channel; (6)Four Stereo SCART (line) inputs, one Mono input; two Stereo SCART outputs.
Features
MSP3450G-QI-B8-V3 features: (1)Standard Selection with single I2C transmission; (2)Automatic Standard Detection of terrestrial TV standards/Automatic Carrier Mute function; (3)Automatic Sound Selection (mono/stereo/bilingual), new registers MODUS, STATUS; (4)Two selectable sound IF (SIF) inputs; (5)Automatic Carrier Mute function.

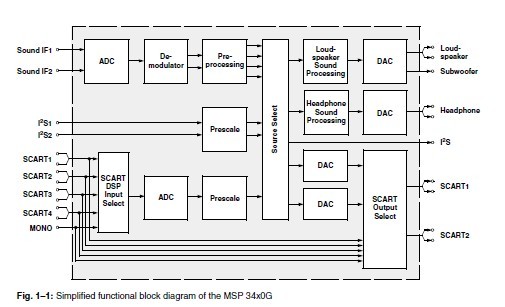

Diagrams
 |
