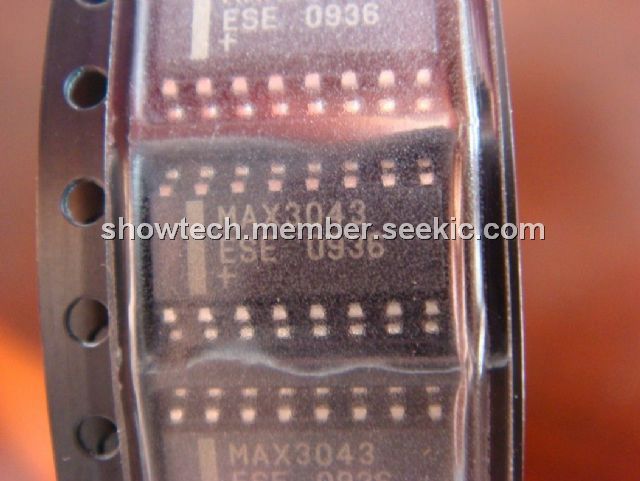

MAX3043ESE

5V quad RS-485/RS-422 transmitter, SOP, 1mA, 20Mbps, Low-Power Shutdown Mode

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~2.60

PartNumber:: MAX3043ESE

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Finn's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-28

From Other Seller

Part Number:MAX3043ESE
US $2.00 - 2.60
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX3043ESE is a 5V quad RS-485/RS-422 transmitter designed for digital data transmission over twisted-pair balanced lines. The transmitter output is protected to ±10kV using the Human Body Model. In addition the MAX3043ESE withstands ±4kV per IEC 1000-4-4 Electrical Fast Transient/Burst Stressing. The device features a hot-swap capability that eliminates false transitions on the data cable during power-up or hot insertion. The MAX3043ESE is optimized for data transfer rates up to 20Mbps. It is used in Telecommunications Equipment, Industrial Motor Control, Transmitter for ESD-Sensitive Applications, Hand-Held Equipment, Industrial PLCs, Networking.

Parametrics

MAX3043ESE absolute maximum ratings: (1)Supply Voltage (VCC): +7V; (2)Control Input Voltage (EN, EN, EN_): -0.3V to (VCC+0.3V); (3)Driver Input Voltage (T_IN): -0.3V to (VCC + 0.3V); (4)Driver Output Voltage (Y_, Z_) (Driver Disabled): -7.5V to +12.5V; (5)Driver Output Voltage (Y_, Z_) (Driver Enabled): -7.5V to +10V; (6)Continuous Power Dissipation (TA = +70℃). 16-Pin Wide SO (derate 9.52mW/℃ above +70℃): 755mW; (7)Operating Temperature Range: -40℃ to +85℃; (8)Maximum Junction Temperature: +150℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.

Features

MAX3043ESE features: (1)ESD Protection: ±10kV—Human Body Model; (2)Single +5V Operation; (3)Guaranteed Device-to-Device Skew; (4)Pin-Compatible with SN75174, 26LS31C and LTC487; (5)Hot-Swappable for Telecom Applications; (6)Up to 20Mbps Data Rate (MAX3042B/MAX3045B); (7)Slew-Rate Limited (Data Rates at 2.5Mbps and 250kbps); (8)2nA Low-Power Shutdown Mode; (9)1mA Operating Supply Current; (10)±4kV EFT Fast Transient Burst Immunity per IEC 1000-4-4; (11)Level 2 Surge Immunity per IEC 1000-4-5, Unshielded Cable Model; (12)Ultra-Small 16-Pin TSSOP, 16-Pin Narrow SO, and Wide 16-Pin SO.
