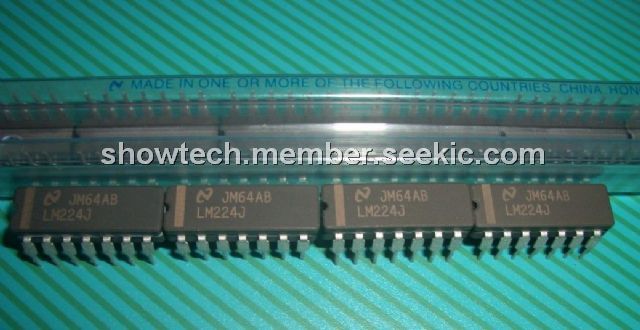

LM224J

Low Power, Quad Operational Amplifiers, DIP, 14pin, Internal Frequency Compensation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.00

PartNumber:: LM224J

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Finn's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-21

From Other Seller

Part Number:LM224J
US $0.80 - 1.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

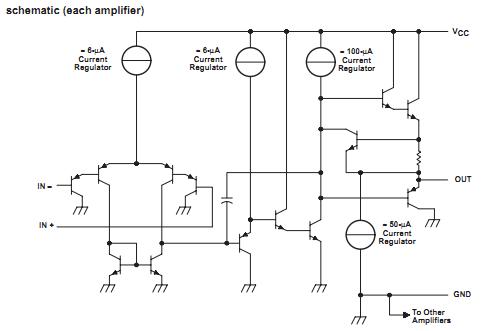

The LM224J is a quadruple operational amplifier. The LM224J consists of four independent high-gain frequency-compensated operational amplifiers that is designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies is also possible when the difference between the two supplies is 3 V to 30 V and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply current drain is independent of the magnitude of the supply voltage.

Parametrics

LM224J absolute maximum ratings: (1)Supply voltage, VCC: 32V; (2)Differential input voltage, VID: ±32V; (3)Input voltage, VI (either input): –0.3 to 32V; (4)Operating free air temperature range, TA: –25 to 85℃; (5)Storage temperature range: –65 to 150℃; (6)Case temperature for 60 seconds: 260℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: 300℃.

Features

LM224J features: (1)Wide Range of Supply Voltages: Single Supply: 3 V to 30 V, or Dual Supplies; (2)Low Supply Current Drain Independent of Supply Voltage: 0.8mA Typ; (3)Common-Mode Input Voltage Range Includes Ground Allowing Direct Sensing Near Ground; (4)Low Input Bias and Offset Parameters: Input Offset Voltage: 3 mV Typ; A Versions: 2 mV Typ; Input Offset Current: 2 nA Typ; Input Bias Current: 20 nA Typ; A Versions: 15 nA Typ; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V; (6)Open-Loop Differential Voltage Amplification: 100 V/mV Typ; (7)Internal Frequency Compensation.
