Product Summary

The IDT70V3569S5BF is a high-speed 16Kx36 bit synchronous Dual-Port RAM. The memory array utilizes Dual-Port memory cells to allow simultaneous access of any address from both ports. Registers on control, data, and address inputs provide minimal setup and hold times. The timing latitude of IDT70V3569S5BF provided by this approach allows systems to be designed with very short cycle times. With an input data register, the IDT70V3569S5BF has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode.

Parametrics

IDT70V3569S5BF absolute maximum ratings: (1)VTERM, Terminal Voltage with Respect to GND: -0.5 to +4.6V; (2)TBIAS, Temperature Under Bias: -55 to +125℃; (3)TSTG, Storage Temperature: -65 to +150℃; (4)IOUT, DC Output Current: 50mA.

Features

IDT70V3569S5BF features: (1)True Dual-Port memory cells which allow simultaneous access of the same memory location; (2)High-speed clock to data access; (3)Pipelined output mode; (4)Counter enable and reset features; (5)Dual chip enables allow for depth expansion without additional logic; (6)Full synchronous operation on both ports; (7)Separate byte controls for multiplexed bus and bus matching compatibility; (8)Industrial temperature range (-40℃ to +85℃) is available for selected speeds; (9)Available in a 208-pin Plastic Quad Flatpack (PQFP), 208-ball fine-pitch Ball Grid Array, and 256-pin Ball Grid Array.

Diagrams

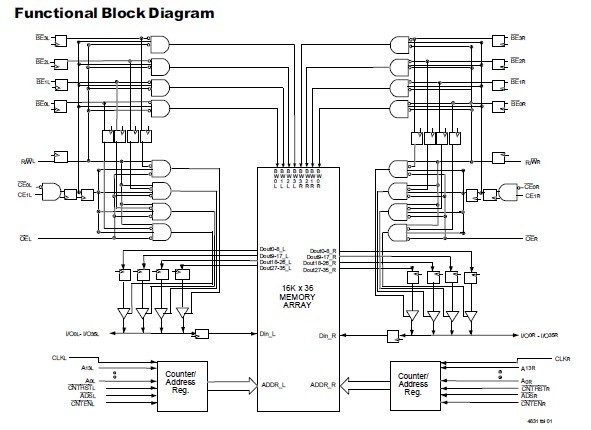

IDT70V3569S5BF functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IDT70V3569S5BF
IDT70V3569S5BF

IC SRAM 576KBIT 5NS 208FBGA
Data Sheet
0-14: $32.64
IDT70V3569S5BF8
IDT70V3569S5BF8

IC SRAM 576KBIT 5NS 208FBGA
Data Sheet
0-1000: $25.50
IDT70V3569S5BFI
IDT70V3569S5BFI

IC SRAM 576KBIT 5NS 208FBGA
Data Sheet
0-14: $35.90
IDT70V3569S5BFI8
IDT70V3569S5BFI8

IC SRAM 576KBIT 5NS 208FBGA
Data Sheet
0-1000: $28.04
