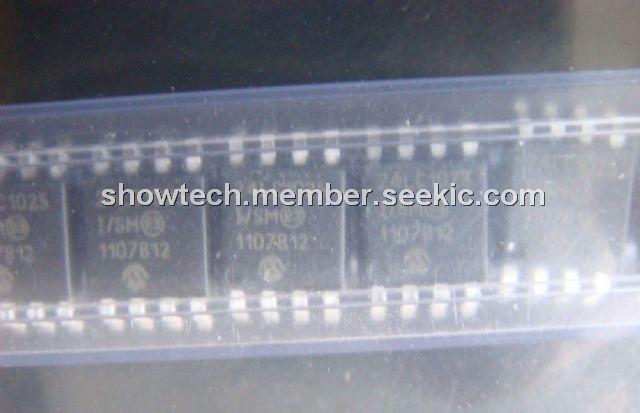

24LC1025-I/SM

8SOIC, 1024K I2C CMOS Serial EEPROM, 128-byte page write buffer, Hardware write-protect

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.80

PartNumber:: 24LC1025-I/SM

Brand:: Microchip Technology - Microchip | Pack: MSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Finn's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-15

From Other Seller

Part Number:24LC1025-I/SM
US $0.30 - 0.80
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 24LC1025-I/SM is a 128K x 8 (1024K bit) Serial Electrically Erasable PROM, capable of operation across a broad voltage range (1.8V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. The 24LC1025-I/SM has both byte write and page write capability of up to 128 bytes of data. The 24LC1025-I/SM is capable of both random and sequential reads. Reads may be sequential within address boundaries 0000h to FFFFh and 10000h to 1FFFFh.

Parametrics

24LC1025-I/SM absolute maximum ratings: (1)VCC:6.5V; (2)All inputs and outputs w.r.t. VSS:-0.6V to VCC +1.0V; (3)Storage temperature:-65℃ to +150℃; (4)Ambient temperature with power applied:-40℃ to +125℃; (5)ESD protection on all pins:≥ 4kV.

Features

24LC1025-I/SM features: (1)Single supply with operation down to 1.7V for 24AAXX devices, 2.5V for 24LCXX devices; (2)Low-power CMOS technology:Read current 1 mA, typical, Standby current 100 nA, typical; (3)2-wire serial interface, I2C compatible; (4)Cascadable up to four devices; (5)Schmitt Trigger inputs for noise suppression; (6)Output slope control to eliminate ground bounce; (7)100 kHz and 400 kHz clock compatibility; (8)1 MHz clock for FC versions; (9)Page write time 3 ms, typical; (10)Self-timed erase/write cycle; (11)128-byte page write buffer; (12)Hardware write-protect; (13)ESD protection >400V; (14)More than 1 million erase/write cycles; (15)Data retention >200 years; (16)Factory programming available; (17)Packages include 8-lead PDIP, SOIJ; (18)Pb-free and RoHS compliant.
