Product Summary
The Honeywell HMC1021Z magnetic sensor is a surface mount sensor designed for low field magnetic sensing. Applications for the HMC1021Z include Compassing, Navigation Systems, Magnetometry, and Current Sensing. The HMC1021Z sensor utilizes Honeywell Anisotropic Magnetoresistive (AMR) technology that provides advantages over coil based magnetic sensors.
Parametrics
HMC1021Z absolute maximum ratings: (1)Supply: 5 to 12V; (2)Resistance: 600 to 1200ohm; (3)Operating Temperature: -55 to 150℃; (4)Storage Temperature: -55 to 175℃; (5)S/R Repeatability: 100μV; (6)Bandwidth: 5MHz.
Features
HMC1021Z features: (1)Surface Mount 1 and 2-Axis Sensors; (2)Low Cost; (3)4-Element Wheatstone Bridges; (4)Low Voltage Operations (2.0V); (5)Available in Tape & Reel Packaging; (6)Patented Offset and Set/Reset Straps; (7)Wide Field Range (up to +/-6 Oe).

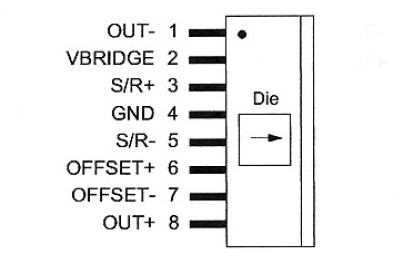

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HMC1021Z |
|
SENSOR LINEAR MAGN 1 AXIS 8-SIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
HMC1021Z-RC |
|
SENSOR LINEAR MAGN 1 AXIS 8-SIP |
Data Sheet |
|
|
||||||||||||
