Product Summary

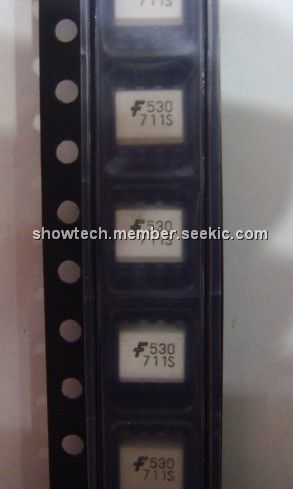

The HCPL-0530 is a dual channel optocoupler. It contains a pair of light emitting diodes and integrated photodetectors with electrical insulation between input and output. The applications of the HCPL-0530 include: (1)Line Receivers-High Common Mode Transient Immunity (>1000 V/μs) and Low Input-Output Capacitance(0.6 pF); (2)High Speed Logic Ground Isolation-TTL/TTL, TTL/LTTL, TTL/CMOS, TTL/LSTTL; (3)Replace Pulse Transformers-Save Board Space and Weight; (4)Analog Signal Ground Isolation-Integrated Photon Detector Provides Improved Linearity over Phototransistor Type; (5)Polarity Sensing; (6)Isolated Analog Amplifier-Dual Channel Packaging Enhances Thermal Tracking.
Parametrics
HCPL-0530 absolute maximum ratings: (1)Storage Temperature TS: -55 to 125 ℃; (2)Operating Temperature TA: -55 to 100 ℃; (3)Average Forward Input Current (each channel) IF(AVG): 25 mA; (4)Peak Forward Input Current (each channel)(50% duty cycle, 1 ms pulse width) IF(PEAK): 50 mA; (5)Peak Transient Input Current (each channel) IF(TRANS): 1 A; (6)Reverse LED Input Voltage (each channel) VR: 5 V; (7)Input Power Dissipation (each channel) PIN: 45 mW; (8)Average Output Current (each channel) IO(AVG): 8 mA; (9)Peak Output Current IO(PEAK): 16 mA; (10)Supply Voltage (Pin 8-5) VCC: -0.5 to 30 V; (11)Output Voltage (Pins 7-5, 6-5) VO: -0.5 to 20 V; (12)Output Power Dissipation (each channel) PO: 35 mW.
Features
HCPL-0530 features: (1)15 kV/μs Minimum Common Mode Transient Immunity at VCM = 1500 V; (2)High Speed: 1 Mb/s; (3)TTL Compatible; (4)Available in 8 Pin DIP, SO-8, and 8 Pin DIP -Gull Wing Surface Mount (Option 020) Packages; (5)High Density Packaging; (6)3 MHz Bandwidth; (7)Open Collector Outputs; (8)Guaranteed Performance from 0℃ to 70℃; (9)Safety Approval.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-0530 |
Avago Technologies |
High Speed Optocouplers 1MBd 2Ch 16mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-0530#500 |
Avago Technologies |
High Speed Optocouplers 1MBd 2Ch 16mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-0530-000E |
Avago Technologies |
High Speed Optocouplers 1MBd 2Ch 16mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-0530-500E |
Avago Technologies |
High Speed Optocouplers 1MBd 2Ch 16mA |
Data Sheet |
|
|
||||||||||||
