Product Summary

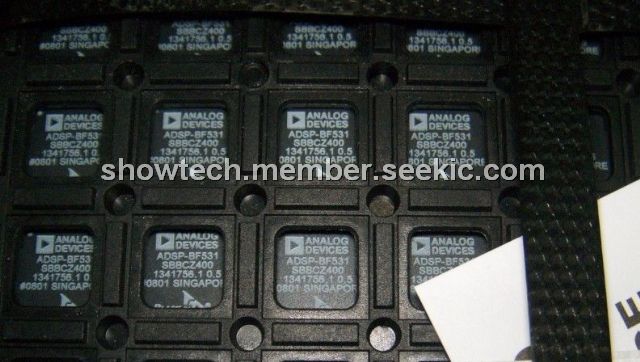

The ADSP-BF531SBBCZ400 is a digital processor from Analog Devices.

Parametrics

ADSP-BF531SBBCZ400 absolute maximum ratings: (1)Package: 176-lead LQFP; (2)Speed (MHz): 400; (3)RAM Memory (kB): 52; (4)Ambient Temp Range (℃): -40 to +85.

Features

ADSP-BF531SBBCZ400 features: (1)ADSP-BF533 Blackfin processor; (2)64 MB (32M × 16-bit) SDRAM; (3)2 MB (512k × 16-bit × 2) flash memory; (4)AD1836 96 kHz audio codec with 4 input and 6 output RCA jacks; (5)ADV7183 video decoder with 3 input RCA jacks; (6)ADV7171 video encoder with 3 output RCA jacks; (7)ADM3202 RS-232 line driver/receiver.

Diagrams

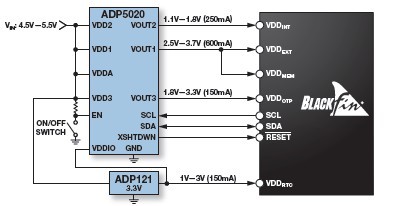

ADSP-BF531SBBCZ400 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADSP-BF531SBBCZ400
ADSP-BF531SBBCZ400

IC DSP CTLR 16 400MHZ 160CSPBGA
Data Sheet
0-1: $11.51
1-10: $10.47
10-100: $8.90
100-250: $8.11
250-500: $7.59
500-1000: $6.98
