Product Summary

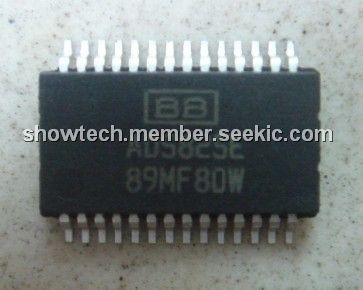

The ADS825E is a pipeline, CMOS analog-to-digital converter that operates from a single +5V power supply. The ADS825E provides excellent performance with a single-ended input and can be operated with a differential input for added spurious performance. The ADS825E employs digital error correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for medical imaging, communications, video, and test instrumentation. The ADS825E offers power dissipation of 190mW and also provide a power-down mode, thus reducing power dissipation to only 20mW. The ADS825E is +3V or +5V Logic I/O compatible.
Parametrics
ADS825E absolute maixmum ratings: (1)+VS: +6V; (2)Analog Input: –0.3V to (+VS + 0.3V); (3)Logic Input: –0.3V to (+VS + 0.3V); (4)Case Temperature: +100℃; (5)Junction Temperature: +150℃; (6)Storage Temperature: +150℃.
Features
ADS825E features: (1)high snr: 60db; (2)high sfdr: 72dbfs; (3)low power: 190mw; (4)internal/external reference option; (5)single-ended or fully differential analog input; (6)programmable input range; (7)low dnl: 0.5lsb; (8)single +5v supply operation.

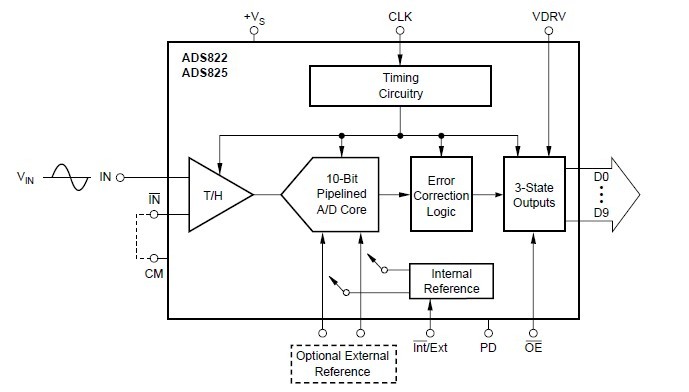

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS825E |
Texas Instruments |
ADC (A/D Converters) 10Bit 40MSPS SE/Diff Inp Int/Ext Ref |
Data Sheet |
|
|
||||||||||||
|
ADS825E/1K |
Texas Instruments |
ADC (A/D Converters) 10Bit 40MSPS SE/Diff Inp Int/Ext Ref |
Data Sheet |
|
|
||||||||||||
|
ADS825EG4 |
Texas Instruments |
ADC (A/D Converters) 10Bit 40MSPS SE/Diff Inp Int/Ext Ref |
Data Sheet |
|
|
||||||||||||
|
ADS825E/1KG4 |
Texas Instruments |
ADC (A/D Converters) 10Bit 40MSPS SE/Diff Inp Int/Ext Ref |
Data Sheet |
|
|
||||||||||||
