Product Summary

The AD7398BRUZ quad, 12-bit, voltage output digital-to-analog converter (DAC) is designed to operate from a single 3 V to 5 V supply. Built with the Analog Devices, Inc. robust CBCMOS process, this monolithic DAC offers the user low cost with ease-of-use in single or dual-supply systems.

Parametrics

AD7398BRUZ absolute maximum ratings: (1)VDD to GND: -0.3V, +7V; (2)VSS to GND: +0.3V, -7V; (3)VREF to GND: VSS, VDD; (4)Logic Inputs to GND: -0.3V, +8V; (5)VOUT to GND: VSS-0.3V, VDD+0.3V; (6)IOUT Short Circuit to GND: 50mA; (7)Maximum Junction Temperature (TJ Max): 150℃; (8)Reflow Soldering Peak Temperature, SnPb: 240℃; (9)Reflow Soldering Peak Temperature, Pb-Free: 260℃.

Features

AD7398BRUZ features: (1)Programmable power shutdown; (2)Single (3 V to 5 V) or dual (±5 V) supply operation; (3)3-wire, serial SPI-compatible interface; (4)Internal power-on reset; (5)Double buffered registers for simultaneous multichannel DAC update; (6)Four separate rail-to-rail reference inputs; (7)Thin profile, TSSOP-16 package available; (8)Low tempco: 1.5 ppm/℃; (9)Qualified for automotive applications.

Diagrams

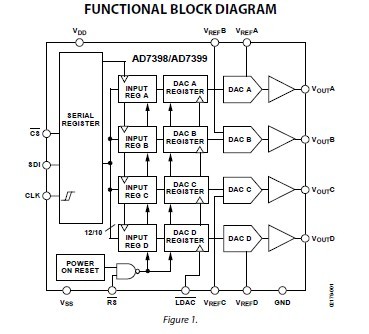

AD7398BRUZ FUNCTIONAL BLOCK DIAGRAM

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

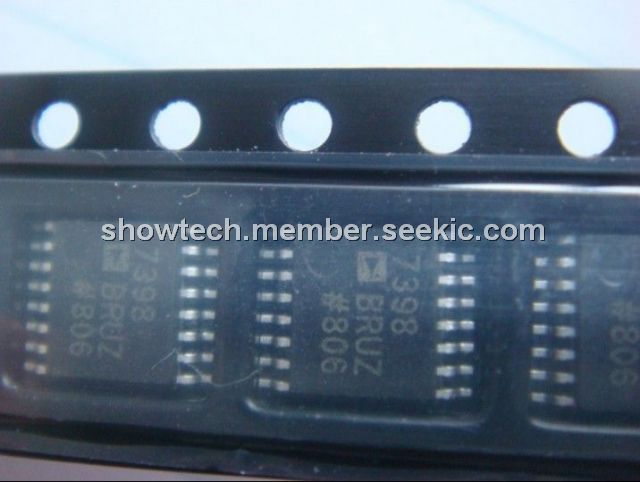

AD7398BRUZ
AD7398BRUZ

IC DAC 12BIT QUAD SRL-IN 16TSSOP
Data Sheet
0-1: $11.69
1-10: $10.63
10-100: $9.03
100-250: $8.24
250-500: $7.70
500-1000: $7.08
AD7398BRUZ-REEL7
AD7398BRUZ-REEL7

IC DAC 12BIT QUAD SERIAL 16TSSOP
Data Sheet
0-1000: $7.08
