Product Summary
The 2SB1732 is a Low frequency amplifier.
Parametrics
2SB1732 absolute maximum ratings: (1)Collector-base voltage VCBO: -15V; (2)Collector-emitter voltage VCEO: -12V; (3)Emitter-base voltage VEBO: -6V; (4)Power dissipation PC: 400mW*2; (5)Junction temperature: 150℃; (6)Range of storage temperature: -55 to +150℃.
Features
2SB1732 features: (1)A collector current is large.; (2)Collector saturation voltage is low. VCE(sat)≤ -200mV, at IC = -500mA / IB = -25mA.

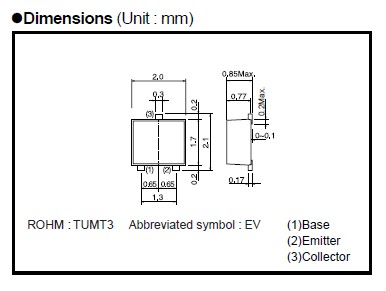

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2SB1732TL |
ROHM Semiconductor |
Transistors Bipolar (BJT) 12V 1.5A PNP LOW |
Data Sheet |
|
|
|||||||||||||||||||
