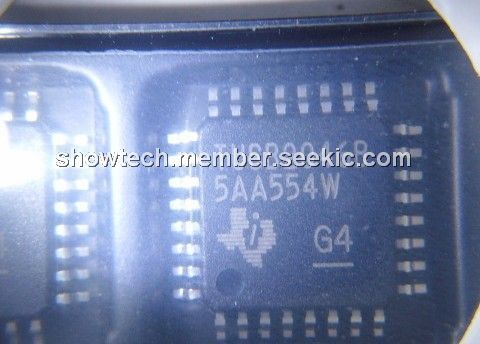

TUSB2046BVFRG4

3.3-V CMOS hub device, 32-LQFP, ±20 mA, TUSB2046BVFRG4

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.00

PartNumber:: TUSB2046BVFRG4

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Finn's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-27

From Other Seller

Part Number:TUSB2046BVFRG4
US $0.80 - 1.00
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

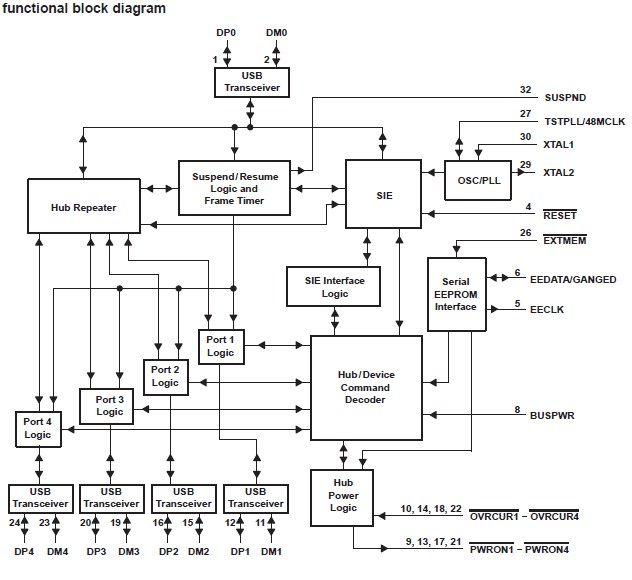

The TUSB2046BVFRG4 is a 3.3-V CMOS hub device that provides one upstream port and four downstream ports in compliance with the 1.1 Universal Serial Bus (USB) specification. And the TUSB2046BVFRG4 provides the flexibility of using a 6-MHz or a 48-MHz clock. The logic level of the TSTMODE terminal controls the selection of the clock source. When TSTMODE is low, the output of the internal APLL circuitry is selected to drive the internal core of the TUSB2046BVFRG4. When TSTMODE is high, the TSTPLL/48MCLK input is selected as the input clock source and the APLL circuitry is powered down and bypassed.

Parametrics

TUSB2046BVFRG4 absolute maximum ratingS: (1)Supply voltage range, Vcc: -0.5 V to 3.6 V;(2)Input voltage range: -0.5 V to VCC+0.5 V;(3)Output voltage range: -0.5 V to VCC+0.5 V;(4)Input clamp current, IIK: ±20 mA;(5)Output clamp current, IOK: ±20 mA;(6)Storage temperature range: -65℃to 150℃;(7)Operating free-air temperature range: 0℃to 70℃.

Features

TUSB2046BVFRG4 features:(1)Universal Serial Bus (USB) Version 1.1 Compliant; (2)32-Terminal LQFP Package With a 0.8-mm Terminal Pitch; (3)3.3-V Low Power ASIC Logic; (4)Integrated USB Transceivers; (5)State Machine Implementation Requires No Firmware Programming; (6)One Upstream Port and Four Downstream Ports; (7)All Downstream Ports Support Full-Speed and Low-Speed Operations; (8)Power Switching and Overcurrent Reporting Is Provided Ganged or Per Port; (9)Supports Suspend and Resume Operations; (10)Supports Programmable Vendor ID and Product ID With External Serial EEPROM; (11)3-State EEPROM Interface Allows EEPROM Sharing; (12)Package Pinout Allows 2-Layer PCB; (13)Low EMI Emission Achieved by a 6-MHz Crystal Input; (14)Migrated From Proven TUSB2040 Hub; (15)Lower Cost Than the TUSB2040 Hub; (16)Enhanced System ESD Performance.
