Product Summary

The TLC074AI is a BiMOS general-purpose operational amplifier. The BiMOS family concept is simple: provide an upgrade path for BiFET users who are moving away from dual-supply to single-supply systems and demand higher AC and dc performance. With performance rated from 4.5V to 16V across commercial (0℃ to 70℃) and an extended industrial temperature range (-40℃ to 125℃), TLC074AI suits a wide range of audio, automotive, industrial and instrumentation applications.

Parametrics

TLC074AI absolute maximum ratings: (1)Supply voltage, VDD: 17V; (2)Differential input voltage range, VID: ±VDD; (3)Operating free-air temperature range, TA: C suffix, 0℃ to 70℃; (4)Operating free-air temperature range, TA: I suffix: -40℃ to 125℃; (5)Maximum junction temperature, TJ: 150℃; (6)Storage temperature range, Tstg: -65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLC074AI features: (1)Wide Bandwidth: 10 MHz; (2)High Output Drive; (3)High Slew Rate; (4)Wide Supply Range: 4.5 V to 16 V; (5)Supply Current: 1.9 mA/Channel; (6)Ultralow Power Shutdown Mode; (7)Low Input Noise Voltage: 7 nV/Hz; (8)Input Offset Voltage: 60 μV; (9)Ultra-Small Packages: 8 or 10 Pin MSOP.

Diagrams

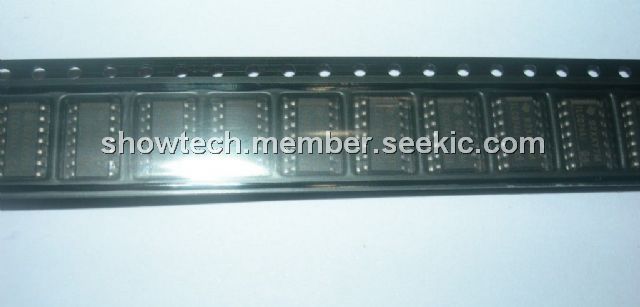

TLC074AI Operational Amplifier

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLC074AID
TLC074AID
Texas Instruments
Operational Amplifiers - Op Amps Quad Lw Pwr
Data Sheet
0-1: $2.17
1-25: $1.81
25-100: $1.58
100-250: $1.38
TLC074AIN
TLC074AIN
Texas Instruments
Operational Amplifiers - Op Amps Quad Low Power
Data Sheet
0-1: $1.83
1-25: $1.67
25-100: $1.34
100-250: $1.16
TLC074AIPWPG4
TLC074AIPWPG4
Texas Instruments
Operational Amplifiers - Op Amps Dual Wide-Bandwidth Hi-Output-Drv Op Amp
Data Sheet
0-1: $1.89
1-25: $1.57
25-100: $1.38
100-250: $1.20
TLC074AIPWP
TLC074AIPWP
Texas Instruments
Operational Amplifiers - Op Amps Quad High-Output
Data Sheet
0-1: $1.89
1-25: $1.57
25-100: $1.38
100-250: $1.20
TLC074AINE4
TLC074AINE4
Texas Instruments
Operational Amplifiers - Op Amps Dual Wide-Bandwidth Hi-Output-Drv Op Amp
Data Sheet
0-1: $1.86
1-25: $1.52
25-100: $1.34
100-250: $1.27
TLC074AIDRG4
TLC074AIDRG4
Texas Instruments
Operational Amplifiers - Op Amps Dual Wide-Bandwidth Hi-Output-Drv Op Amp
Data Sheet
0-1860: $1.00
1860-2000: $0.97
2000-2500: $0.97
2500-5000: $0.93
TLC074AIDR
TLC074AIDR
Texas Instruments
Operational Amplifiers - Op Amps Dual Wide-Bandwidth Hi-Output-Drv Op Amp
Data Sheet
0-1860: $1.00
1860-2000: $0.97
2000-2500: $0.97
2500-5000: $0.93
TLC074AIDG4
TLC074AIDG4
Texas Instruments
Operational Amplifiers - Op Amps Quad Lw Pwr
Data Sheet
0-1: $2.17
1-25: $1.81
25-100: $1.58
100-250: $1.38
