Product Summary

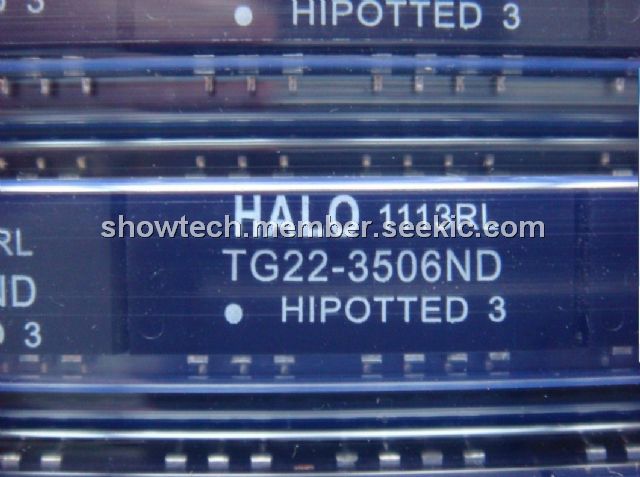

The TG22-3506ND is a 10/100 High Speed LAN Magnetics Isolation Module. It is UL/EN60950 and DEMKO recognized. Available in industry standard and low profile packages. The TG22-3506ND is available for most LAN IC manufacturer products.
Parametrics
TG22-3506ND electrical specifications: (1)Isolation Voltage: 1,500 Vrms; (2)OCL (100KHz, 0.1Vrms, 8mA): 350 μH Min.; (3)Leakage Inductance (1MHz): 0.4 μH Max.; (4)Cw/w: 15 pF Typ.; (5)DCR: 0.9 Ω Max.; (6)Rise Time: 2.5 nS Typ.; (7)Insertion Loss (0.1-100MHz): -1.1 dB Max.; (8)Cross Talk (0.1-100 MHz): -38 dB Min.; (9)CMR (0.1-100MHz): -40 dB Typ.
