Product Summary

The SN65176BP is a differential bus transceiver. It is an integrated circuit designed for bidirectional data communication on multipoint bus transmission lines. The SN65176BP is designed for balanced transmission lines and meet ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27. The SN65176BP combines a 3-state differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply.

Parametrics

SN65176BP absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Voltage range at any bus terminal: –10 V to 15 V; (3)Enable input voltage, VI: 5.5 V; (4)Package thermal impedance, θJA: D package: 97℃/W, P package: 85℃/W, PS package: 95℃/W; (5)Operating virtual junction temperature, TJ: 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (7)Storage temperature range, Tstg: –65℃ to 150℃.

Features

SN65176BP features: (1)Bidirectional Transceivers; (2)Meet or Exceed the Requirements of ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.11 and X.27; (3)Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments; (4)3-State Driver and Receiver Outputs; (5)Individual Driver and Receiver Enables; (6)Wide Positive and Negative Input/Output Bus Voltage Ranges; (7)Driver Output Capability: ±60 mA Max; (8)Thermal Shutdown Protection; (9)Driver Positive and Negative Current Limiting.

Diagrams

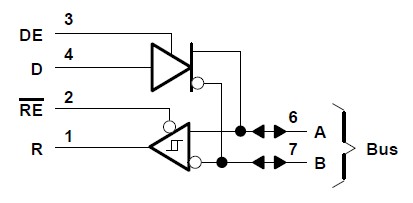

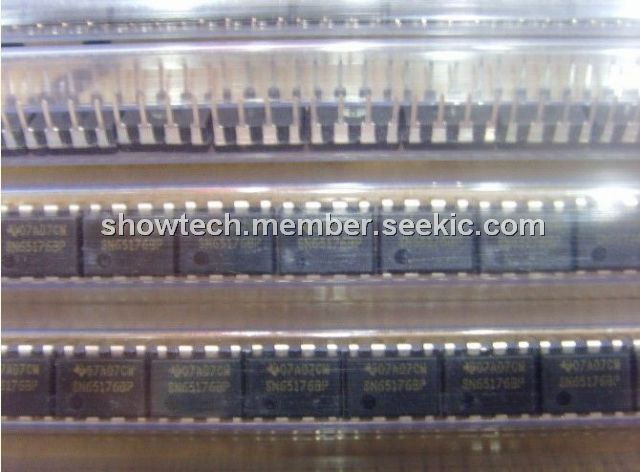

SN65176BP diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN65176BP
SN65176BP
Texas Instruments
Buffers & Line Drivers Diff Bus Trans
Data Sheet
0-1: $0.40
1-25: $0.35
25-100: $0.27
100-250: $0.27
SN65176BPE4
SN65176BPE4
Texas Instruments
Buffers & Line Drivers Differential Bus Transceiver
Data Sheet
0-1: $0.47
1-25: $0.37
25-100: $0.32
100-250: $0.28
