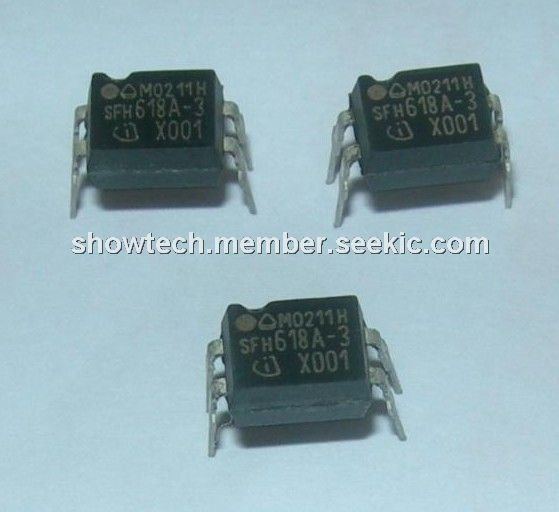

SFH618A-3

5.3 kV, TRIOS, optocoupler, low current input, phototransistor output, DIP4

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.22 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.22

PartNumber:: SFH618A-3

Brand:: Vishay Siliconix - vishay | Pack: DIP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Finn's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-26

From Other Seller

Part Number:SFH618A-3
US $0.20 - 0.22
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SFH618A-3 (DIP) features a high current transfer ratio, low coupling capacitance and high isolation voltage. The coupler has a GaAs infrared diode emitter, which is optically coupled to silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 or SMD package. The SFH618A-3 is designed for signal transmission between two electrically separated circuits.

Parametrics

SFH618A-3 absolute maximum ratings: (1)Reverse voltage, VR: 6.0V; (2)Power dissipation, Pdiss: 70mW; (3)Collector-emitter voltage, VCE: 55V; (4)Emitter-collector voltage, VEC: 7.0V; (5)Collector current, IC: 50mA; (6)Power dissipation, Pdiss: 150mW.

Features

SFH618A-3 features: (1)Good CTR Linearity Depending on Forward Current; (2)Low CTR Degradation; (3)High Collector-emitter Voltage, Vceo = 55 V; (4)Isolation Test Voltage, 5300 V RMS; (5)Low Coupling Capacitance; (6)End-Stackable, 0.100 (2.54 mm) Spacing; (7)High Common-mode Interference Immunity; (8)Lead-free component.
