Product Summary

The S3A-13-F is a 3.0A surface mount glass passivated rectifier.

Parametrics

S3A-13-F absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 50V; (2)Working Peak Reverse Voltage, VRWM: 50V; (3)DC Blocking Voltage, VR: 50V; (4)RMS Reverse Voltage, VR(RMS): 30V; (5)Average Rectified Output Current @ TT = 75℃, IO: 3.0 A; (6)Non-Repetitive Peak Forward Surge Current 8.3ms, Single Half Sine-Wave Superimposed on Rated Load, IFSM: 100 A.

Features

S3A-13-F features: (1)Glass Passivated Die Construction; (2)Low Forward Voltage Drop and High Current Capability; (3)Surge Overload Rating to 100A Peak; (4)Ideally Suited for Automated Assembly; (5)Lead Free Finish/RoHS Compliant; (6)Green Molding Compound (No Halogen and Antimony); (7)Qualified to AEC-Q101 Standards for High Reliability.

Diagrams

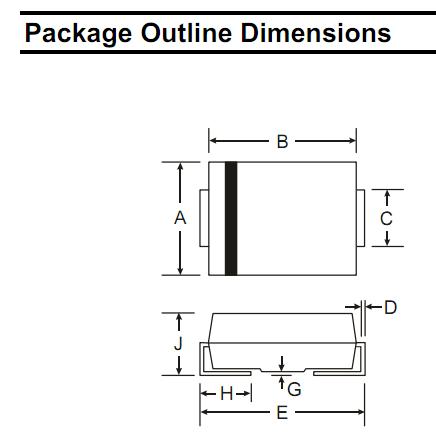

S3A-13-F package outline dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S3A-13-F
S3A-13-F
Diodes Inc.
Rectifiers 50V 3A
Data Sheet
0-1: $0.35
1-10: $0.25
10-100: $0.16
100-500: $0.13
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S3A-13-F
S3A-13-F
Diodes Inc.
Rectifiers 50V 3A
Data Sheet
0-1: $0.35
1-10: $0.25
10-100: $0.16
100-500: $0.13
S3A-251510
S3A-251510
New Age Enclosures

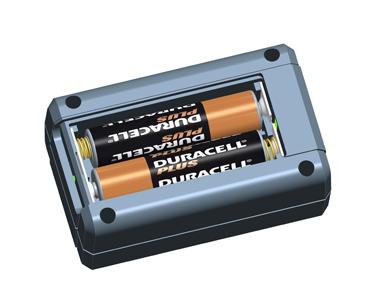

Enclosures, Boxes, & Cases 2.5 x 1.5 x 1.0 BLK AAA BATTERY BOX
Data Sheet
0-1: $1.90
1-10: $1.55
10-25: $1.45
25-100: $1.39
S3A-251605
S3A-251605
New Age Enclosures

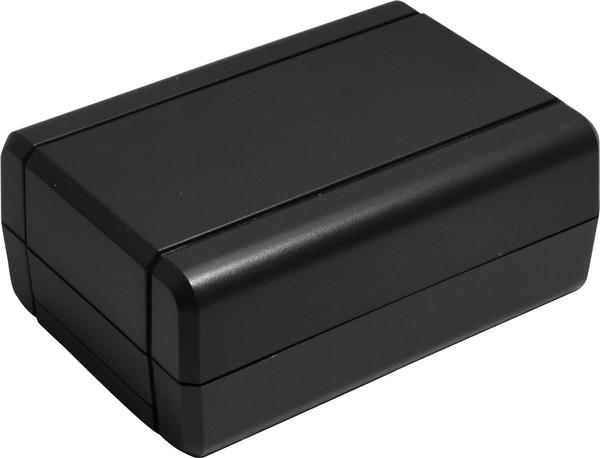

Enclosures, Boxes, & Cases 2.5x1.6x0.5-Blk Screw-Together
