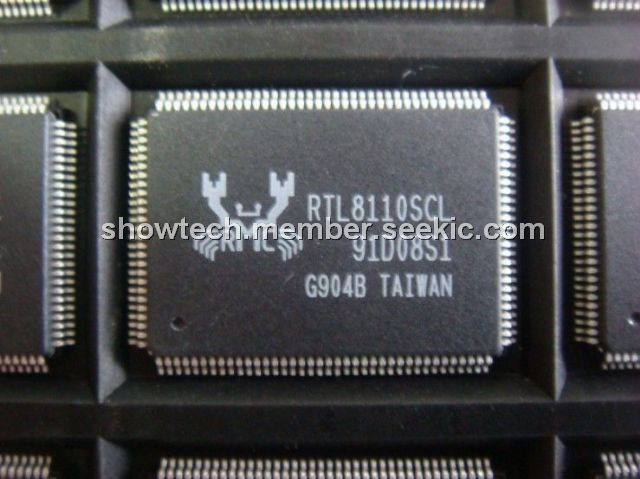

RTL8110SCL-GR

integrated gigabit ethernet controller, LOM, MiniPCI, QFP, -0.5V to 4V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~1.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.20~1.80

PartNumber:: RTL8110SCL-GR

Brand:: Realtek Semiconductor - Realtek | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Finn's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-16

From Other Seller

Part Number:RTL8110SCL-GR
US $1.20 - 1.80
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The RTL8110SCL-GR LOM Gigabit Ethernet controller combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, 32-bit PCI bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8110SCL-GR offers high-speed transmission over CAT 5 UTP or CAT 3 UTP (10Mbps only) cable. Functions of the RTL8110SCL-GR such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.

Parametrics

RTL8110SCL-GR absolute maximum ratings: (1)Supply Voltage (VDD33, AVDD33):-0.5 to 4V ; (2)Supply Voltage (AVDD18):-0.5 to 2V ; (3)Supply Voltage (VDD15, AVDD15):-0.5 to 1.8V ; (4)Input Voltage (DCinput):-0.5 to VDD33 + 0.5V ; (5)Output Voltage (DCoutput):-0.5 to VDD33 + 0.5V ; (6)Storage Temperature:-55 to +125℃.

Features

RTL8110SCL-GR features: (1)Integrated 10/100/1000 transceiver; (2)Auto-Negotiation with Next Page capability; (3)Supports PCI rev.2.3, 32-bit, 33/66MHz; (4)Supports CLKRUNB and MiniPCI v1.0; (5)Supports pair swap/polarity/skew correction; (6)Crossover Detection & Auto-Correction; (7)Wake-on-LAN and remote wake-up support; (8)Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support ; (9)Supports Full Duplex flow control(IEEE 802.3x); (10)Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab; (11)Supports IEEE 802.1P Layer 2 Priority Encoding; (12)Supports IEEE 802.1Q VLAN tagging; (13)Serial EEPROM; (14)3.3V signaling, 5V PCI I/O tolerant; (15)Transmit/Receive FIFO support; (16)Supports power down/link down power saving; (17)Supports PCI Message Signaled Interrupt (MSI).
