Product Summary
The MT8808AP is an ISO-CMOS 8 x 8 Analog Switch Array. It is fabricated in MITEL’ s ISOCMOS technology providing low power dissipation and high reliability. The MT8808AP contains a 8 x 8 array of crosspoint switches along with a 6 to 64 line decoder and latch circuits. Any one of the 64 switches can be addressed by selecting the appropriate six address bits. The applications of the MT8808AP are Key systems, PBX systems, Mobile radio, Test equipment /instrumentation, Analog/digital multiplexers, Audio/Video switching.
Parametrics
MT8808AP absolute maximum ratings: (1)Supply Voltage: VDD:-0.3V to 15.0V, VSS: -0.3 to VDD+0.3V; (2)Analog Input Voltage:VINA: -0.3 to VDD+0.3 V; (3)Digital Input Voltage:VIN:VSS-0.3 to VDD+0.3 V; (4)Current on any I/O Pin:I:±15 mA; (5)Storage Temperature:TS:-65 to +150℃.
Features
MT8808AP features: (1)Internal control latches and address decoder; (2)Short set-up and hold times; (3)Wide operating voltage: 4.5V to 13.2V; (4)12Vpp analog signal capability; (5)RON 65Ω max. @ VDD=12V, 25℃; (6)ΔRON ≤10Ω @ VDD=12V, 25℃; (7)Full CMOS switch for low distortion; (8)Minimum feedthrough and crosstalk; (9)Separate analog and digital reference supplies; (10)Low power consumption ISO-CMOS technology.

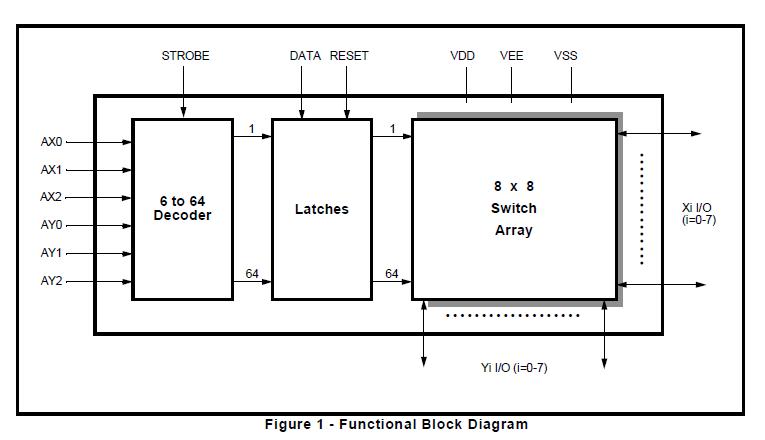

Diagrams
 |
