Product Summary

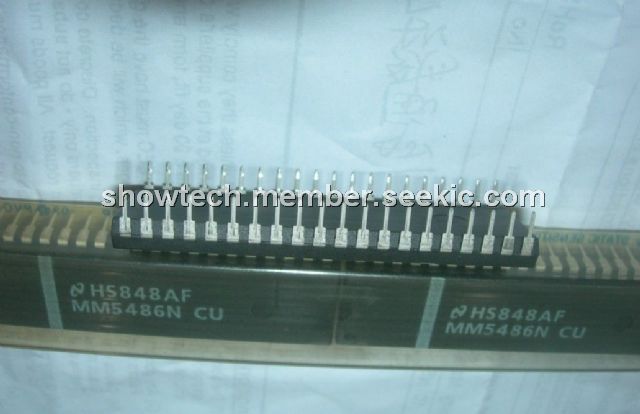

The MM5486N is a monolithic MOS integrated circuit utilizing N-channel metal-gate low-threshold, enhancement mode and ion-implanted depletion mode devices. It is available in a 40-pin molded dual-in-line package. The MM5486N is designed to drive common anode-separate cathode LED displays. A single pin controls the LED display brightness by setting a reference current through a variable resistor connected to VDD.
Parametrics
MM5486N absolute maximum ratings: (1)Voltage at Any Pin: VSS to VSS+12V; (2)Operating Temperature: -25 to +85℃; (3)Storage Temperature: -65 to +150℃; (4)Power Dissipation at 25℃, Molded DIP Package, Board Mount: 2.5W; (5)Power Dissipation at 25℃, Molded DIP Package, Sket Mount: 2.3W; (6)Junction Temperature: +150℃; (7)Lead Temperature (Soldering, 10 seconds): +300℃.
Features
MM5486N features: (1)Continuous brightness control; (2)Serial data input/outut; (3)External load input; (4)Cascaded operation capability; (5)Wide power supply operation; (6)TTL compatibility; (7)33 outputs, 15 mA sink capability; (8)Alphanumeric capability.
Diagrams
 |
