Product Summary

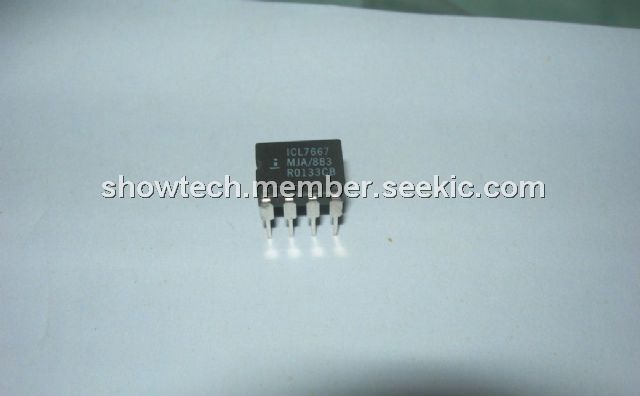

The ICL7667MJA/883 is a dual monolithic high-speed driver designed to convert TTL level signals into high current outputs at voltages up to 15V. Its high speed and current output enable ICL7667MJA/883 to drive large capacitive loads with high slew rates and low propagation delays. With an output voltage swing only millivolts less than the supply voltage and a maximum supply voltage of 15V, the ICL7667MJA/883 is well suited for driving power MOSFETs in high frequency switchedmode power converters.
Parametrics
ICL7667MJA/883 absolute maximum ratings: (1)Supply Voltage V+ to V-: 15V; (2)Input Voltage: V- -0.3V to V+ +0.3V; (3)Package Dissipation, TA 25℃: 500mW; (4)Operating Temperature Range: 0℃ to 70℃; (5)Maximum Storage Temperature Range: -65℃ to 150℃; (6)Maximum Lead Temperature (Soldering 10s): 300℃.
Features
ICL7667MJA/883 features: (1)Fast Rise and Fall Times: 30ns with 1000pF Load; (2)Wide Supply Voltage Range, VCC = 4.5V to 15V; (3)Low Power Consumption; (4)TTL/CMOS Input Compatible Power Driver, ROUT = 7W Typ; (5)Direct Interface with Common PWM Control ICs; (6)Pin Equivalent to DS0026/DS0056; TSC426.

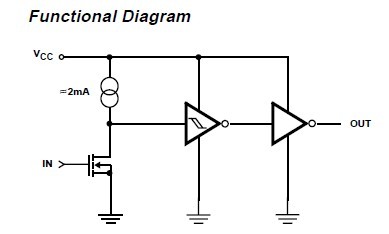

Diagrams
