Product Summary

The HK100533NJ-T is a multilayer chip inductor for high frequency applications (hk series). The applications of the device include Portable telephones, PHS and W-LAN, Miscellaneous high-frequency circuits and EMI countermeasure in high-frequency circuits.

Parametrics

HK100533NJ-T absolute maximum ratings: (1)Inductance: 33 nH; (2)Tolerance: 0.3 nH; (3)Maximum DC Current: 200 mAmps; (4)Maximum DC Resistance: 0.5 Ohms; (5)Self Resonant Frequency: 1900 MHz; (6)Q Minimum: 8; (7)Operating Temperature Range: - 55 to + 125℃; (8)Termination Style: SMD/SMT; (9)Package / Case: 0402 (1005 metric); (10)Dimensions: 0.5 mm W × 1 mm L × 0.5 mm H; (11)Packaging: Reel.

Features

HK100533NJ-T features: (1)Multilayer inductor made of advanced ceramics with low-resistivity silver used as internal conductors provides excellent Q and SRF characteristics; (2)Designed to address surface mount inductor needs for applications above 100MHz; (3)Multilayer block structure ensures outstanding reliability, high productivity and product quality; (4)The small case size lineup with 01005 inch size.

Diagrams

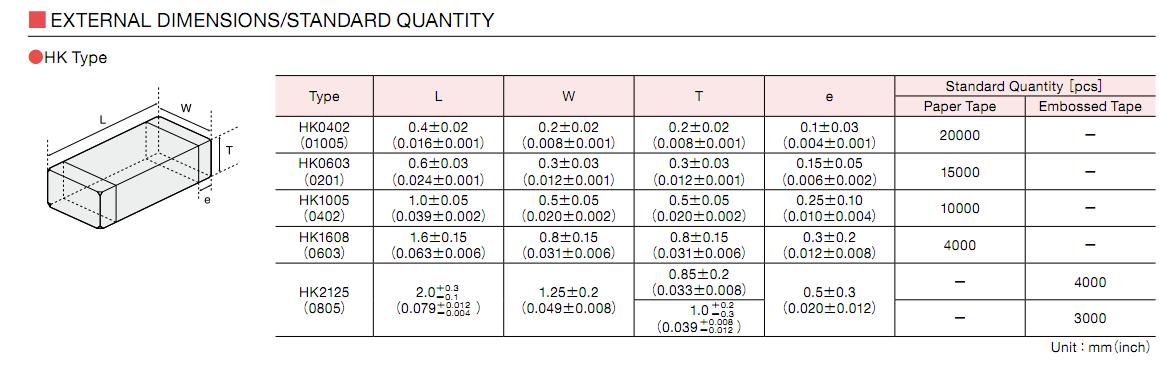

HK100533NJ-T outline dimenisons

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HK100533NJ-T
HK100533NJ-T
Taiyo Yuden
RF Inductors INDCTR HIFREQ MLTLYR 0402 33nH 5%
Data Sheet
0-1: $0.03
1-10: $0.02
10-50: $0.02
50-100: $0.02
