HCPL-0600

high speed-10 mbit/s logic gate optocoupler, 5 mA, 5.5 V, 85 mW, SOP-8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: HCPL-0600

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Finn's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-27

From Other Seller

Part Number:HCPL-0600
US $1.00 - 1.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

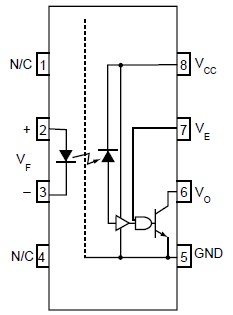

The HCPL-0600 is a high speed-10 mbit/s logic gate optocoupler. It consists of an AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output. The HCPL-0600 is housed in a compact small-outline package. This output features an open collector, thereby permitting wired OR outputs. The applications of the HCPL-0600 include: Ground loop elimination, LSTTL to TTL, LSTTL or 5-volt CMOS, Line receiver, data transmission, Data multiplexing, Switching power supplies, Pulse transformer replacement, Computer-peripheral interface.

Parametrics

HCPL-0600 absolute maximum ratings: (1)Storage Temperature TSTG: -40 to +125 ℃; (2)Operating Temperature TOPR: -40 to +85 ℃; (3)Lead Solder Temperature TSOL: 260 for 10 sec ℃; (4)DC/Average Forward Input Current IF: 50 mA; (5)Enable Input Voltage Not to exceed VCC by more than 500 mV VE: 5.5 V; (6)Reverse Input Voltage VR: 5.0 V; (7)Power Dissipation PI: 45 mW; (8)Supply Voltage VCC(1 minute max): 7.0 V; (9)Output Current IO: 50 mA; (10)Output Voltage VO: 7.0 V; (11)Collector Output Power Dissipation PO: 85 mW.

Features

HCPL-0600 features: (1)Compact SO8 package; (2)Very high speed-10 MBit/s; (3)Superior CMR-10 kV/μs; (4)Fan-out of 8 over -40℃ to +85℃; (5)Logic gate output; (6)Strobable output; (7)Wired OR-open collector; (8)U.L. recognized (File # E90700).
