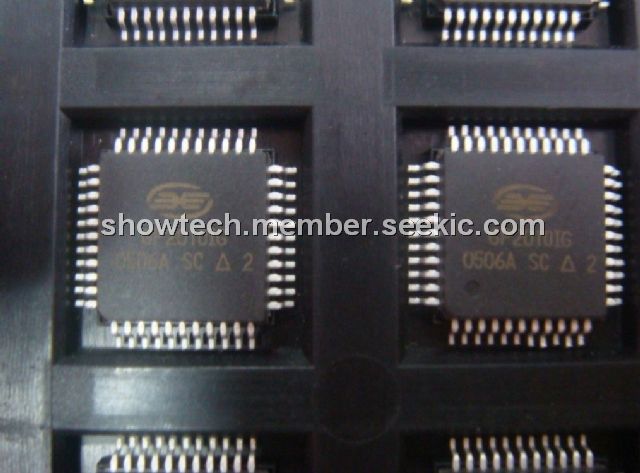

GP2010IG

GPS Receiver, RF Front End, QFP, 7V, +15dBm, 200mW, Low Voltage Operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~3.50

PartNumber:: GP2010IG

Brand:: Zarlink Semiconductor Inc - Zarlink | Pack: QFP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Finn's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-22

From Other Seller

Part Number:GP2010IG
US $3.00 - 3.50
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

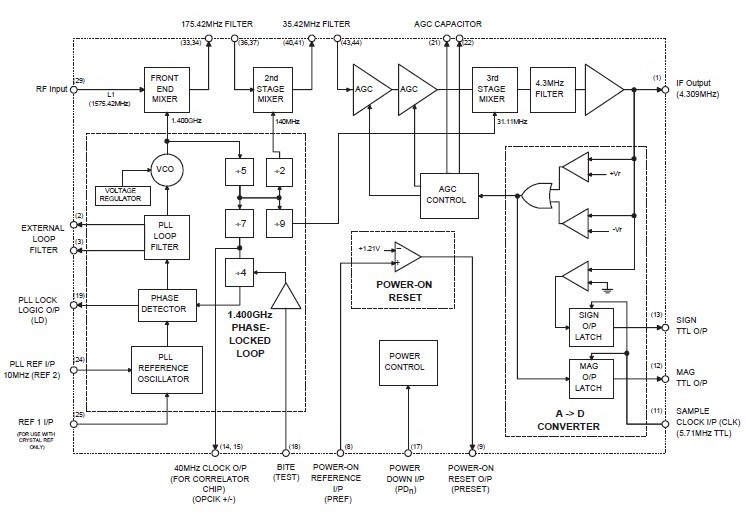

The GP2010IG is Mitel Semiconductor second generation RF Front-end for Global Positioning System (GPS) receivers. The GP2010IG uses many innovative design techniques and a leading-edge bipolar process to offer a low power, low cost and high reliability RF Front End solution . The GP2010IG is designed to operate from either 3 or 5 Volt power supplies. The input to the device is the L1(1575.42MHz) Coarse-Acquisition (C/A) code Global Positioning signal from an antenna (via a low-noise pre-amplifier). The output is 2-bit quantised for subsequent signal processing in the digital domain. The GP2010IG contains an on-chip synthesiser, mixers, AGC and a quantiser which provides Sign and Magnitude digital outputs. A minimum of external components is required to make a complete GPS front-end. The device has been designed to operate with the GP2021 12-channel Global Positioning Correlator, and DW9255 SAW filter, both also available from Mitel Semiconductor.

Parametrics

GP2010IG absolute maixmum ratings: (1)Max. Supply Voltage: 7V; (2)Max. RF Input: +15dBm; (3)Max. voltage on any pin: VCC/VDD + 0.5V; (4)Min. voltage on any pin: VEE - 0.5V; (5)Storage Temperature: -65℃ to +150℃; (6)Operation Junction Temperature: -40℃ to +150℃; (7)10MHz Reference Input: 1.5V pk -pk.

Features

GP2010IG features: (1)Low Voltage Operation(3V - 5V); (2)Low Power - 200mW typ. (3V supply); (3)C/A Code Compatible; (4)On-chip PLL Including Complete VCO; (5)Triple ConversioReceiver; (6)44-Lead Surface Mount Quad Flat-Pack Package; (7)Sigand Magnitude Digital Outputs; (8)Compatible with GP2021 CMOS Correlator.
