Product Summary

The CR14505BL is a lithium manganese dioxide battery.

Parametrics

CR14505BL absolute maximum ratings: (1)Nominal capacity ( at 0.5mA, +23℃): 1800mAh; (2)Nominal voltage: 3.0V; (3)Standard discharge current: 0.5mA; (4)Maximum continuous current: 10mA; (5)Maximum pulse current: 100mA; (6)Operating temperature range: -40 to 85℃; (7)Storage temperature (recommended ): 30℃ max; (8)Weight: 22g.

Features

CR14505BL features: (1)Light Weight, High Voltage and High Energy Density; (2)Excel lent Stable Discharge Characteristics and outstanding Temperature Characteristics; (3)The battery is bobbin type and best suited for long term use with low current; (4)Excel lent Leakage Resistance and excel lent Long-term Reliability.

Diagrams

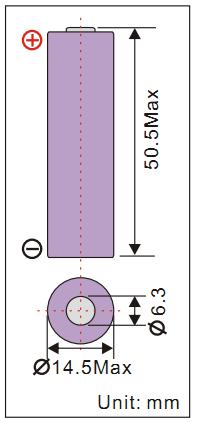

CR14505BL dimensions
