Product Summary

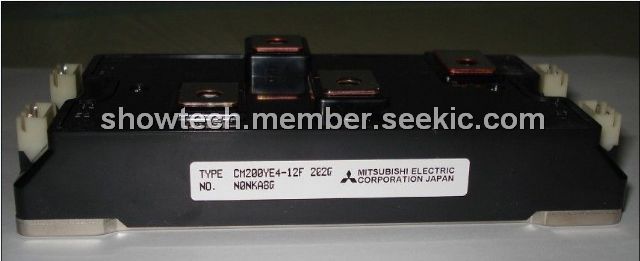

The CM200YE4-12F is an IGBT Power module. Applications of the it are: UPS, Solar Inverter, Motor Control.

Features

CM200YE4-12F features: (1)Wide range of 3-level IGBT module from 10A to 600A; (2)Real Time current Controller (RTC) to allow handling of the 3-level specific short circuit turn off routine; (3)Trench gate IGBT (full gate technology) starting from 75A -class; (4)Pluggable gate and emitter terminals; (5)13in1 (with brake), 4in1 and 2 x 2in1 solutions depending on current rating.

Diagrams

CM200YE4-12F diagram

CM2006
CM2006
Other

Data Sheet
Negotiable
CM2006-02QR
CM2006-02QR
