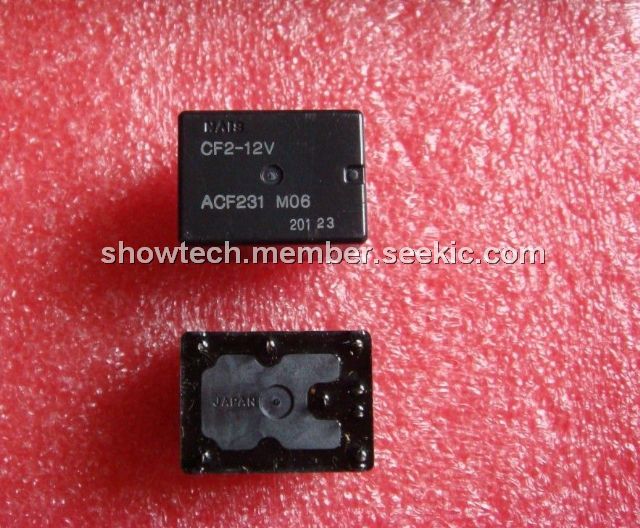

The CF2-12V is a new dual power automotive relay.
Parametrics
CF2-12V specifications: (1)Arrangement: 1 Form C×2 (H bridge); (2)Contact material: Silver alloy; (3)Initial contact resistance, max.(By voltage drop 6 V DC 1 A): 50 mΩ; (4)Contact voltage drop, max.: 0.2 V (at 20 A switching); (5)Rating Nominal switching capacity: N.O.: 20A 14 V DC; N.C.: 10A 14 V DC; (6)Max. switching power: 140 W; (7)Max. switching voltage: 16 V DC; (8)Max. make current: 10 A (Continuous), 30 A (within 1 min.; coil applied voltage: 12 V, at 20 ℃); (9)Max. carrying current: 30 A (2 minutes ), 20A (1 hour)(coil applied voltage: 12 V, at 20 ℃); (10)Expected life(min. ope.)Mechanical (at 180 cpm): 1000000; Electrical resistive load: Min.100000; 7 A 14 V DC, Inrush 30 A; (11)(Motor load)200000; 20 A 14 V DC(Motor lock) Min.50000; (12)Nominal operating power: 640 mW.
Features
CF2-12V features: (1)7 Amp Steady/30 Amp Inrush current capability; (2)Simple footprint enables ease of PC board layout.
