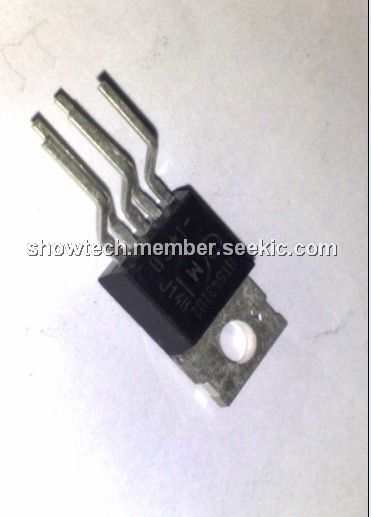

BTS432D2

power FET, TO220, 11A, Load dump, reverse battery protection, Current limitation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.40~1.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.40~1.45

PartNumber:: BTS432D2

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Finn's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-21

From Other Seller

Part Number:BTS432D2
US $1.40 - 1.45
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

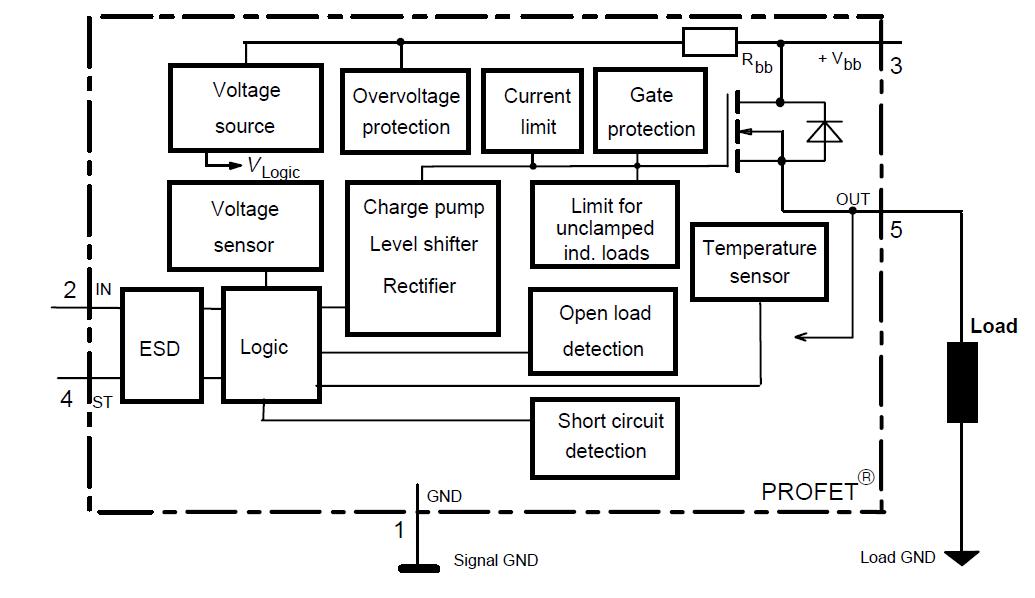

The BTS432D2 is an N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, integrated in Smart SIPMOSa chip on chip technology. Fully protected by embedded protection functions. The application of the BTS432D2 include μC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads, All types of resistive, inductive and capacitve loads and Replaces electromechanical relays and discrete circuits.

Parametrics

BTS432D2 absolute maximum ratings: (1)VLoad dump: 80 V; (2)Vbb-VOUT Avalanche Clamp: 58 V; (3)Vbb (operation): 4.5 to 42 V; (4)Vbb (reverse): -32 V; (5)RON: 38 mW; (6)IL(SCp): 44 A; (7)IL(SCr): 35 A; (8)IL(ISO): 11 A.

Features

BTS432D2 features: (1)Load dump and reverse battery protection; (2)Clamp of negative voltage at output; (3)Short-circuit protection; (4)Current limitation; (5)Thermal shutdown; (6)Diagnostic feedback; (7)Open load detection in ON-state; (8)CMOS compatible input; (9)Electrostatic discharge (ESD) protection; (10)Loss of ground and loss of Vbb protection; (11)Overvoltage protection; (12)Undervoltage and overvoltage shutdown with autorestart and hysteresis.
