Product Summary

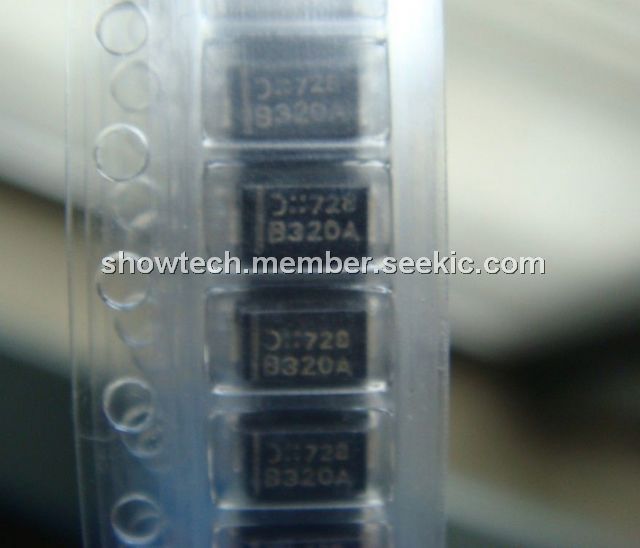

The B320A is a 3.0A surface mount schottky barrier rectifier.
Parametrics
B320A absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 20 V; (2)RMS Reverse Voltage VR(RMS): 14 V; (3)Average Rectified Output Current @ TT = 100℃ IO: 3.0 A; (4)Non-Repetitive Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load(JEDEC Method)IFSM: 100 A; (5)Forward Voltage @ IF = 3.0A VFM: 0.50 V; (6)Peak Reverse Current IRM @TA = 25℃: 0.5 mA; at Rated DC Blocking Voltage @TA = 100℃: 20 mA; (7)Typical Junction Capacitance Cj: 250 pF; (8)Typical Thermal Resistance, Junction to Terminal RθJT: 10 ℃/W; (9)Typical Thermal Resistance, Junction to Ambient RθJA: 50 ℃/W; (10)Operating Temperature Range TSTG: -55 to +150 ℃; (11)Storage Temperature Range Tj: -55 to +125 ℃.
Features
B320A features: (1)Guard Ring Die Construction for Transient Protection; (2)Ideally Suited for Automatic Assembly; (3)Low Power Loss, High Efficiency; (4)Surge Overload Rating to 100A Peak; (5)For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application; (6)Plastic Material - UL Flammability Classification 94V-0.

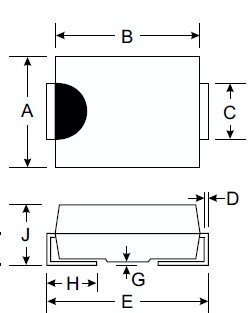

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 B320A-13-F |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 20V 3A |
Data Sheet |
|
|
||||||||||||
|
B320A-13 |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 20V 3A |
Data Sheet |
Negotiable |
|
||||||||||||
 |
B320A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
