Product Summary

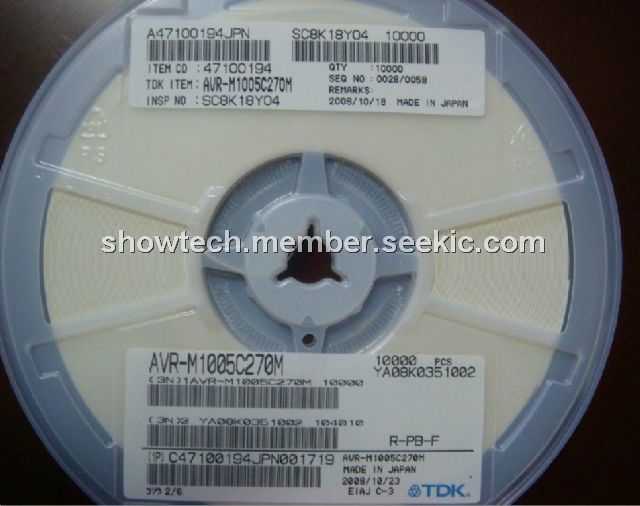

The AVR-M1005C270M is a Capacitor.
Parametrics
AVR-M1005C270M absolute maximum ratings: (1)operating temperatures ranges: -40 to 125℃; (2)storage temperature ranges: -40 to 85℃.
Features
AVR-M1005C270M features: (1)No polarity, due to symmetrical current-voltage characteristics. Equivalent to anode common type Zener diode; (2)Excellent electrostatic absorption capability. Response is as good or better than Zener diode. Keeps symmetrical current-voltage characteristics even after electrostatic absorption; (3)Adopted the inner electrodes lamination structure. Wide range of varistor voltages are available in series (6.8 to 39V); (4)Low capacitance items are available in series (1.1pF to); (5)World’s smallest 0603-, 1005-, 1608-, 2012-chip types and 1410-array type are available in series; (6)Excellent mount reliability. Good for Pb-free soldering, Adopted (Ni/Sn) electroplating, Achieved good solderability and solder heat resistance; (7)Can replace a Zener diode + capacitor combination. Reduced footprint and total mounting cost.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AVR-M1005C270MTAAB |
TDK |
Varistors 0402 27V 4A 40pF |
Data Sheet |
|
|
||||||||||||
|
AVR-M1005C270MTABB |
TDK |
Varistors 0402 27V 1A 15pF |
Data Sheet |
|
|
||||||||||||
