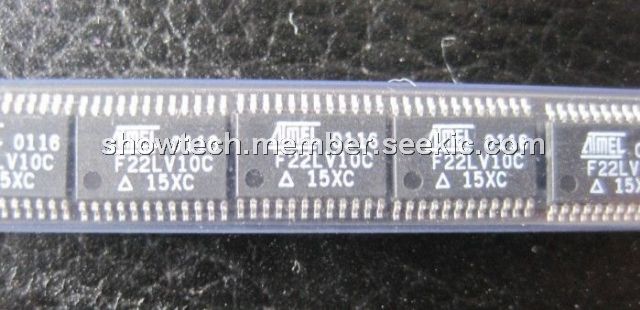

ATF22LV10C-15XC

high－performance CMOS (electrically erasable) programmable logic device, 14.0V, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.50

PartNumber:: ATF22LV10C-15XC

Brand:: ATMEL Corporation - ATMEL | Pack: TSSOP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Finn's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-07

From Other Seller

Part Number:ATF22LV10C-15XC
US $1.50 - 2.50
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

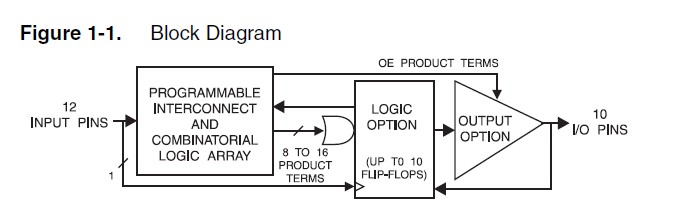

The ATF22LV10C-15XC is a high－performance CMOS (electrically erasable) programmable logic device (PLD) that utilizes the Atmel proven electrically erasable Flash memory technology. Speeds down to 10ns and power dissipation as low as 10mA are offered. All speed ranges are specified over the 3.0V to 5.5V range for industrial and commercial temperature ranges. The ATF22LV10C-15XC provides a low－voltage and user controlled zero power CMOS PLD solution. A user－controlled power－down feature offers zero (10uA typical) standby power. The ATF22LV10C-15XC feature allows the user to manage total system power to meet specific application requirements and enhance reliability, all without sacrificing speed. (The Atmel ATF22LV10CQZ provides edge－sensing zero standby power (3uA typical), as well as low voltage operation. See the ATF22LV10C-15XCdatasheet.)

Parametrics

ATF22LV10C-15XC absolute maximum ratings: (1)Storage Temperature: －65°C to +150°C; (2)Voltage on Any Pin with Respect to Ground: －2.0V to +7.0V(1); (3)Voltage on Input Pins with Respect to Ground During Programming: －2.0V to +14.0V(1); (4)Programming Voltage with Respect to Ground: －2.0V to +14.0V(1).

Features

ATF22LV10C-15XC features: (1)3.0V to 5.5V Operating Range; (2)Advanced Low－voltage Electrically－erasable Programmable Logic Device; (3)User－controlled Power－down Pin Option; (4)Pin－controlled Standby Power (10μA Typical); (5)Well－suited for Battery Powered Systems; (6)10ns Maximum Propagation Delay; (7)CMOS and TTL Compatible Inputs and Outputs; (8)Latch Feature Hold Inputs to Previous Logic States.
