Product Summary
The ADS7806U is a low-power 12-Bit sampling CMOS analog-to-digital converter. It contains a complete 12-bit, capacitor-based, SAR A/D with S/H, clock, reference, and microprocessor interface with parallel and serial output drivers. The ADS7806U can acquire and convert to full 12-bit accuracy in 25ms max while consuming only 35mW max. Laser-trimmed scaling resistors provide standard industrial input ranges of ±10V and 0V to +5V. In addition, a 0V to +4V range allows development of complete single supply systems. The ADS7806U is available in a plastic 0.3 DIP and in an SOIC, both fully specified for operation over the industrial –40℃ to +85℃ temperature range.
Parametrics
ADS7806U absolute maximum ratings: (1)Analog Inputs: R1IN: ±25V; R2IN: ±25V; CAP: VANA +0.3V to AGND2 –0.3V; REF: Indefinite Short to AGND2, Momentary Short to VANA; (2)Ground Voltage Differences: DGND, AGND1, and AGND2: ±0.3V; (3)VANA: 7V; (4)VDIG to VANA: +0.3V; (5)VDIG: 7V; (6)Digital Inputs: –0.3V to VDIG +0.3V; (7)Maximum Junction Temperature: +165℃; (8)Internal Power Dissipation: 825mW; (9)Lead Temperature (soldering, 10s): +300℃.
Features
ADS7806U features: (1)35mw max power dissipation; (2)50μw power down mode; (3)25μs max acquisition and conversion; (4)±1/2lsb max inl and dnl; (5)72db min sinad with 1khz input; (6)±10v, 0v to +5v, and 0v to +4v input ranges; (7)single +5v supply operation; (8)rallel and serial data output; (9)l pin-compatible with 16-bit ads7807; (10)uses internal or external reference; (11)28-pin 0.3 plastic dip and soic.

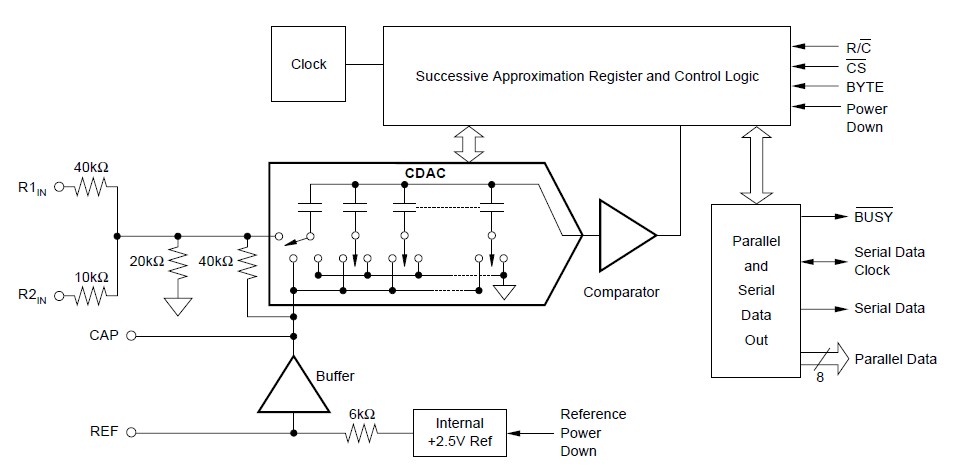

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS7806U |
Texas Instruments |
ADC (A/D Converters) Low-Power 12-Bit Sampling CMOS |
Data Sheet |
|
|
||||||||||||
|
ADS7806U/1K |
Texas Instruments |
ADC (A/D Converters) Low-Power 12-Bit Sampling CMOS |
Data Sheet |
|
|
||||||||||||
|
ADS7806UB |
Texas Instruments |
ADC (A/D Converters) Low-Power 12-Bit Sampling CMOS |
Data Sheet |
|
|
||||||||||||
|
ADS7806UB/1K |
Texas Instruments |
ADC (A/D Converters) Low-Power 12-Bit Sampling CMOS |
Data Sheet |
|
|
||||||||||||
|
ADS7806U/1KG4 |
Texas Instruments |
ADC (A/D Converters) Low-Power 12-Bit Sampling CMOS |
Data Sheet |
|
|
||||||||||||
|
ADS7806U/1KE4 |
Texas Instruments |
ADC (A/D Converters) Low-Power 12-Bit Sampling CMOS |
Data Sheet |
|
|
||||||||||||
|
ADS7806UE4 |
Texas Instruments |
ADC (A/D Converters) Low-Power 12-Bit Sampling CMOS |
Data Sheet |
|
|
||||||||||||
|
ADS7806UBG4 |
Texas Instruments |
ADC (A/D Converters) Low-Power 12-Bit Sampling CMOS |
Data Sheet |
|
|
||||||||||||
