Product Summary

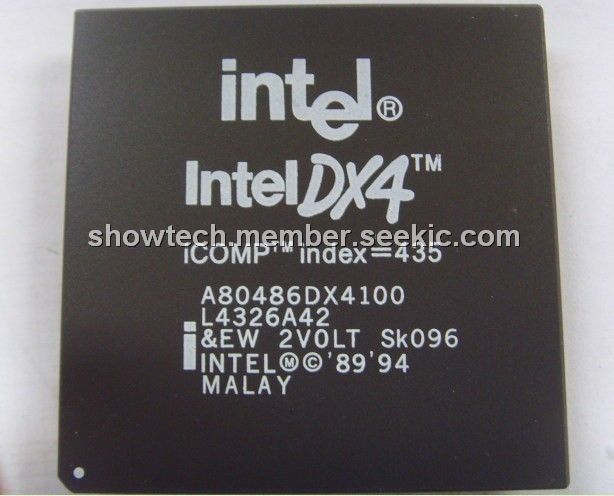

The A80486DX4100 is a high-performance, clock-selectable, 3.3V, 32-bit microprocessor. It provides optimal price/performance for high-end 486 power-managed systems. The A80486DX4100 offers superior local bus graphics performance for microsoft windows. The A80486DX4100 operates with 1X clock input. This 1X clock simplifies system design by reducing the clock frequency required by external devices.

Parametrics

A80486DX4100 absolute maximum ratings: (1)Case temperature under bias: -65℃ to 110℃; (2)Storage temperature: -65℃ to 150℃; (3)Voltage on any pin with respect to groud: -0.5V to VCC +2.6V; (4)Supply voltage with respect to Vss: -0.5V to +4.6V.

Features

A80486DX4100 features: (1)Operating voltage range 3.3V±0.3V; (2)High integration on-chip; (3)High-performance design; (4)Complete 32-bit architecture; (5)Multiprocessor support; (6)Standard 168-pin PGA package; (7)Supports environmental protection agency’s energy star program.

Diagrams

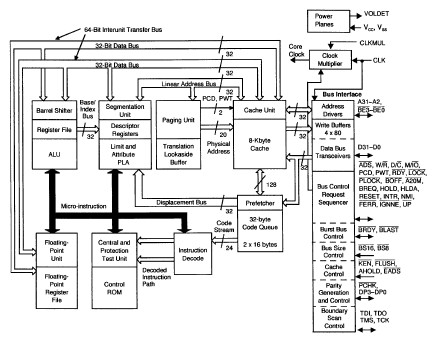

A80486DX4100 block diagram
