Product Summary
The 67155-0002 is a 1.27mm Pitch CF Card Header.
Parametrics
67155-0002 electrical characteristics: (1)Current - Maximum per Contact: 0.5A; (2)Shielded: No; (3)Voltage - Maximum: 500V.
Features
67155-0002 Physical characteristics: (1)Card Detection Switch: N/A; (2)Circuits (Loaded): 50; (3)Circuits (maximum): 50; (4)Color - Resin: Natural; (5)Durability (mating cycles max): 10,000; (6)Ejector Button Side: No Ejector Button Present; (7)Entry Angle :90° Angle (Side Entry); (8)Flammability: 94V-0; (9)Keying to Mating Part: Yes; (10)Material - Metal: Copper Alloy; (11)Material - Plating Mating: Gold; (12)Material - Plating Termination: Tin; (13)Material - Resin: High Temperature Thermoplastic; (14)PCB Locator: Yes; (15)PCB Mounting Side: Normal; (16)PCB Retention: Yes; (17)Packaging Type: Tray; (18)Pitch - Mating Interface (in): 0.050 In; (19)Pitch - Mating Interface (mm): 1.27 mm; (20)Temperature Range - Operating: -20℃ to +90℃; (21)Termination Interface: Style Surface Mount.

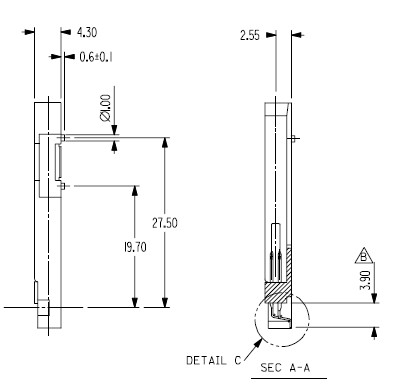

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 67155-0002 |
Molex |
Memory Card Connectors CF CARD HDR RA 50P |
Data Sheet |
|
|
||||||||||||
