Product Summary

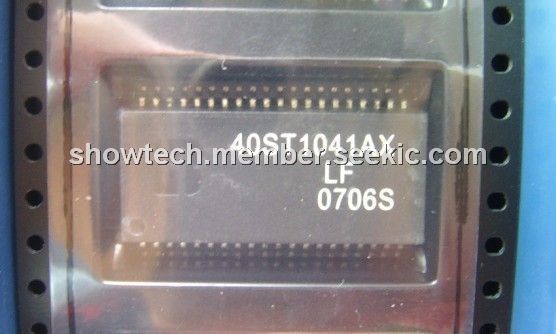

The 40ST1041AX is a 40 pin SMD ethernet 100 base –tx high speed LAN magnetic.
Parametrics
40ST1041AX absolute maximum ratings: (1)OCL(uH Min) @100KHz/0.1Vrms 8mA DC/Bias:350uH; (2)L.L(uH max):0.4uH; (3)Cw/w(pF max):56pF; (4)HI-POT:1500Vrms; (5)Rise time:3.0ns.
Features
40ST1041AX features: (1)Symmetrical TX and RX channels for auto MD1/MD1X capability; (2)Compliant with IEEE 802.3u standards including 350μH OCL with 8mA bias; (3)Designed for reflow soldering at temperatures up to 235℃; (4)Operating temperature range : 0℃ to +70℃; (5)Storage temperature range: -25℃ to +125℃.

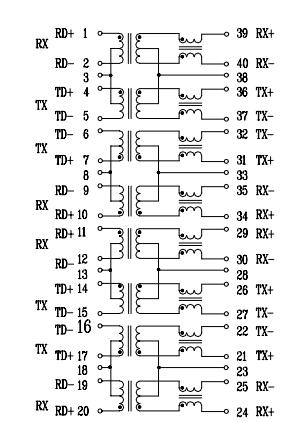

Diagrams
